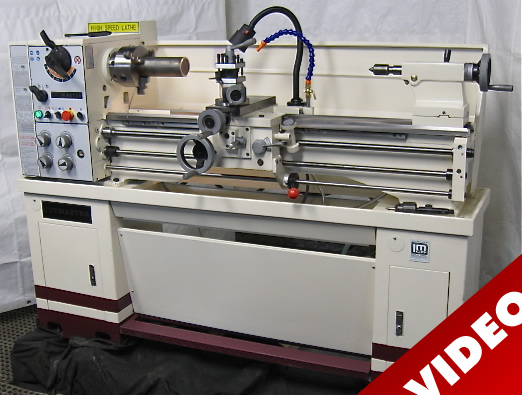

Model: MGL Series
Type: Engine Lathe
Year: New
SPECIFICATIONS:
Swing Over Bed:……….. 14”
Swing Over Cross Slide:… 8-1/4”
Swing In Gap:…………. 19-1/4”
Dist. Between Centers:…. 40”
Spindle Nose:…………. D1-4
Spindle Hole:…………. 1-1/2”
Bed Width:……………. 8”
Spindle Speeds(8)……… 70-2000 RPM
Threading:……………. Inch/Metric
Motor Size:…………… 3 HP – 220/440V – 1 or 3 Phs
Tailstock Taper:………. #3 MT
Weight:………………. 1730 Lbs
Dimensions……………. To be Advised
EQUIPPED WITH:
6” – 3 Jaw Chuck
8” – 4 Jaw Chuck
Geared Head
(4) Way Tool Post
Foot Brake
Coolant System
Follow Rest
Steady Rest
10” Face Plate
Work Light
H & G Bedways
H & G Head stock Gears
Automatic Lubrication System
Splash Guard
Chip Tray
Thread Dial
Tool Box & Tools
Operation Manual
OPTIONAL ACCESSORIES: P.O.R.
8” – 3 Jaw “Set Tru” Chuck
8” – 6 Jaw “Set Tru” Chuck
Taper Turning Attachment (Installed)
Lever Collet Attachment (Installed)
5C Set (1/8” – 1-1/8” X 1/16”)
Aloris Type Q.C. Tool Post W / 5 Holders
14N Jacobs “Ball Bearing” Drill Chuck W/Arbor (0” – 2” Capacity)
#3 Mt Live Center
(2) Axis Sino Digital Readout (Installed)
COMMENTS:
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
