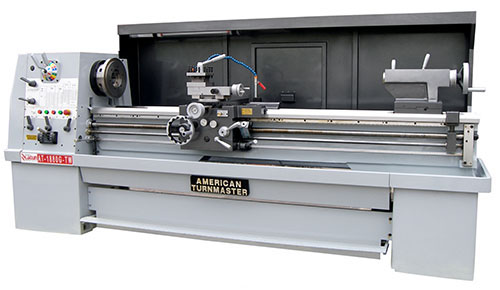

18" x 60" TURNMASTER ... LATHE 3-1/16" SPINDLE HOLE
Click to enlarge
HomeLathes New and UsedLathes - Conventional 18″ x 60″ TURNMASTER … LATHE 3-1/16″ SPINDLE HOLE
Previous product
18" x 40" TURNMASTER ... LATHE 3-1/16" SPINDLE HOLE
18" x 40" TURNMASTER ... LATHE 3-1/16" SPINDLE HOLE
Back to products
Next product
18" x 120" TURNMASTER ... LATHE 3-1/16" SPINDLE HOLE
18" x 120" TURNMASTER ... LATHE 3-1/16" SPINDLE HOLE

18″ x 60″ TURNMASTER … LATHE 3-1/16″ SPINDLE HOLE

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description

Model: AT-18-G
Type: Geared Head Lathe
Year: New

SPECIFICATIONS:

Swing Over Bed……….. 18”
Swing Over Cross Slide… 11”
Swing In Gap…………. 28”
Dist Between Centers….. 60”
Spindle Nose…………. D1-8
Spindle Hole…………. 3-1/16”
Bed Width……………. 13-1/2”
Spindle Speeds(16)……. 20 – 1600 RPM
Threading……………. Inch / Metric
Motor Size…………… 10 HP – 220/440V – 3 Phs
Tailstock Taper………. #5 MT
Weight………………. 5940 Lbs
Dimensions…………… To be Advised

EQUIPPED WITH:

MACHINE FEATURES

3-1/16” Spindle Hole
Cap Bed Design
Forward/Reverse Disc Clutch
Hardened & Ground Head Stock Gears
Hardened & Ground Bed Ways
Turcite On Carriage Ways
Overload Feed Clutch
Constant Horsepower

STANDARD EQUIPMENT

Drive Plate
(4) Way Tool Post
Rear Splash Guard
Chip & Coolant Tray
Thread Dial
(2) #5 MT Dead Centers
Foot Brake
Tools
Manual

OPTIONAL ACCESSORIES AVAILABLE:  P.O.R.

10” – 3 Jaw “Semi Steel” Chuck
12” – 3 Jaw “Semi Steel” Chuck
16” – 3 Jaw “Semi Steel” Chuck
12” – 4 Jaw “Semi Steel” Chuck
16” – 4 Jaw “Semi Steel” Chuck
Taper Turning Attachment … Installed
5C Collet Closer … Installed
5C Collet Set (1/8” – 1-1/16” x 1/16”)
“Aloris Type” Q.C. Tool Post w/(5) Holders
14N Jacobs “Ball Bearing” Chuck w/Arbor (0” -1/2” Capacity
#5 MT Live Center
Chuck Guard w/Limit Switch
Halogen Work Light
Follow Rest w/Bronze Tips
(3/4” – 9”) Steady Rest w/Rollers
(6” – 11”) Steady Rest w/Rollers
Micro Carriage Stop
(5) Position Carriage Stop
(2) Speed Tailstock
Rapid Traverse
Electronic Variable Speed
(2) Axis Acu-Rite D. R. O

COMMENTS:  Mfg. In Europe

“USA” IMPORTER  – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 10611 Category: Lathes - Conventional
