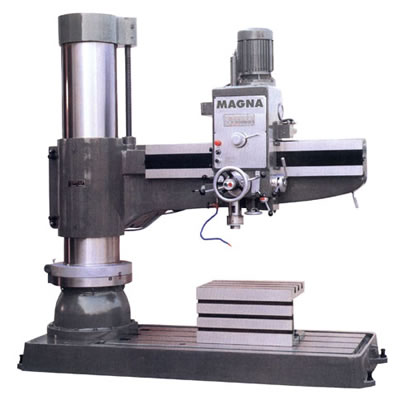

Model : RD-1600
Type: Radial
Year: New
SPECIFICATION:
Arm Length……………. 63″
Column Diameter……….. 17”
Dist Spindle to Base…… 13” – 63”
Spindle Travel………… 14-9/16”
Spindle Taper…………. #5 MT
Spindle Speeds(12)…….. 40 – 1920 RPM
Motor Size – Voltage…… 7.5 HP – 220V or 440V – 3 Phs
Base Dimension………… 97-5/8” x 41-11/32” x 8-1/4”
Weight……………….. 11,220 Lbs
Dimensions (LxWxH)…….. 114″ x 56″ x 115″
DRILLING CAPACITY:
Mild Steel…………. 2-1/4” Hole
Cast Iron………….. 2-5/8” Hole
TAPPING CAPACITY:
Mild Steel…………. 2” Hole
Cast Iron………….. 2-3/8” Hole
BORING CAPACITY:
Mild Steel…………. 5” Hole
Cast Iron………….. 7-3/8” Hole
EQUIPPED WITH:
Box Table
Coolant System
Work Light
Tool Box w/Tools
Manuals
MACHINE FEATURES:
Auto Lube
Hydraulic Clamping
Hardened & Ground Arms Slideways & Gears
Controlled Arm Elevation
Built in Automatic Tool Ejector
Safety Device Prevents Arm from Dropping
OPTIONAL ACCESSORT (P.O.R.):
Tilting Table
“U.S.A. DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
