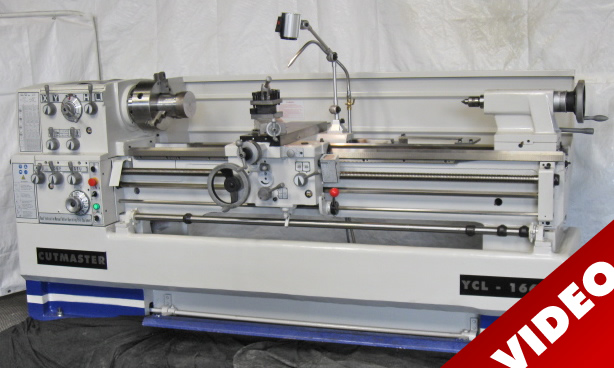

Model: YCL Series … Geared Head
Type: Engine Lathe
Year: New
SPECIFICATIONS:
Headstock…………….. Geared Head
Swing Over Bed:……….. 16”
Swing Over Cross Slide:… 8-3/4
Swing In Gap:…………. 25”
Dist. Between Centers:…. 40” – 60”
Spindle Nose:…………. D1-6
Spindle Hole:…………. 2-1/4”
Bed Width:……………. 11-3/4”
Spindle Speeds:(12)……. 25 – 2000 RPM
Threading:……………. Inch / Metric
Motor Size:…………… 7-1/2 HP – 220/440V – 3 Phs
Tailstock Taper:………. #4 MT
Weight:………………. 4100 – 5100 Lbs
Dimensions……………. To be Advised
EQUIPPED WITH:
10” – 3 Jaw Chuck
12” – 4 Jaw Chuck
(4) Way Tool Post
Taper Attachment
14” Face Plate
7-1/2” Steady Rest (Roller Bearing)
Follow Rest
Coolant System
Splash Guard
Chip Tray
Foot Brake
(5) Position Auto Feed Kick Out
Carriage Stop
Work Lamp
Thread Dial
“OPTIONAL ACCESSORIES” AVAILABLE … (P.O.R.)
10” – 3 Jaw “Set Tru” Chuck
10” – 6 Jaw “Set Tru” Chuck
12” – 4 Jaw “Steel” Chuck
Taper Turning Attachment
Lever Collet Attachment
5C Collet Set (1/8” – 11/8” X 1/16”)
Q.C. Tool Post w / 5 Holders
(2) Axis Newall DRO…(Installed)
