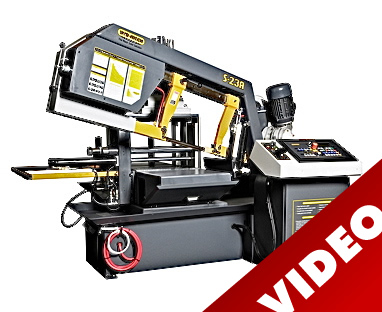

Model: S-23-A
Type: Automatic
Year: New
SPECIFICATION:
Cutting Capacity:
Rounds:
Max. Height….. 16”
At 90 Degrees… 16”
At 45 Degrees… 14”
At 30 Degrees… 8-1/2″
Rectangles:
Max. Width…… 20”
At 90 Degrees… 16” x 20”
At 45 Degrees… 16” x 14”
At 30 Degrees… 16″ x 8-1/2″
Blade Size:………… 1-1/4” X 15’-10”
Blade Speed:(VS)……. 75-350 FPM
Motor Size:………… 8.8 HP – 220/440V – 3 Phs
Work Height………… 33″
Work Load Capacity….. 5000 Lbs
Weight:……………. 4200 Lbs
EQUIPPED WITH:
Powered Blade Brush
Carbide Blade Guides
Cast Iron Guide Arms
Out of Stock Switch
Laser Light
Work Light
Coolant Pump w/Wash Down Hose
Roller Infeed Table & Shuttle Vise
(1) Hydraulic Full Stroking Vise w/(0-29”) Shuttle Stroke (220” Max)
MACHINE FEATURES
45Ëš Mitering (1) Direction
Variable Frequency Drive
Hydraulic Positive Downfeed
Blade Tensioning
1-1/4” Blade – Heavy Duty Gearbox Drive
Laser Light
PLC Touch Screen Control
Enter “Stroke Length” of Barfeed
Enter “Quantity” of Pieces to be Cut
Manual or Automatic
(999) Jobs can be Stored in Queue
(100) Jobs can be Ran Consecutively
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
“Overhead” Hydraulic Bundling
Variable Vise Pressure
Mist Lubrication System
5’ Idler Roller Conveyor-
COMMENTS: Mfg. In North America
