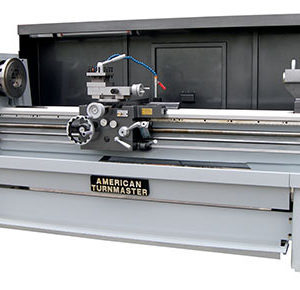

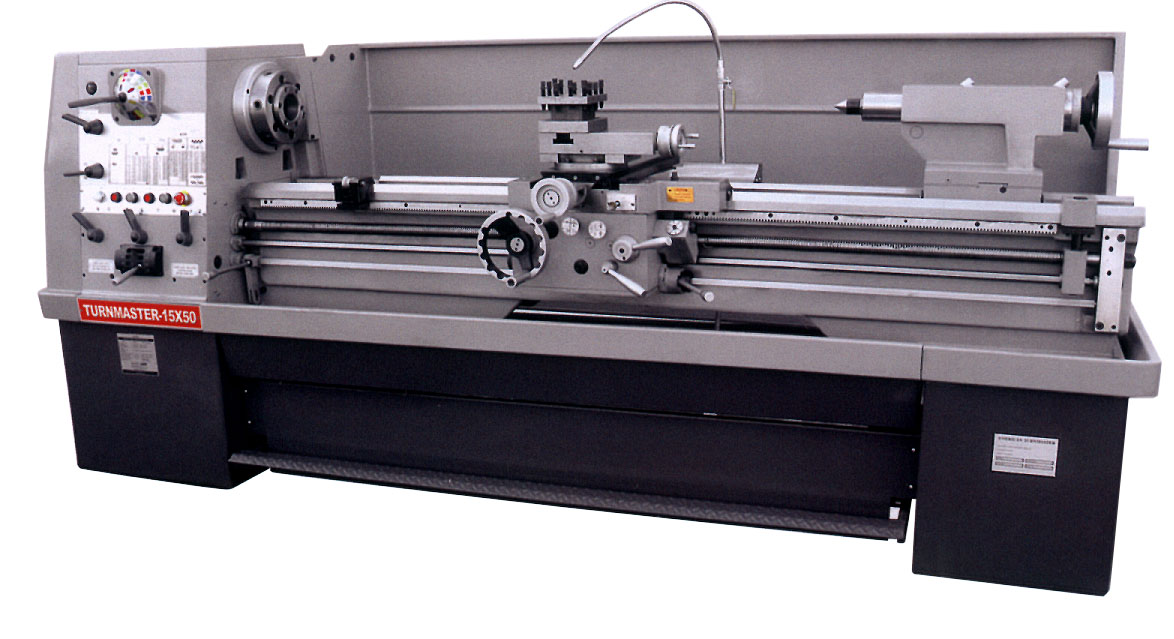

Model: AT-1550-G-TW
Type: Tool Room Lathe
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 15-1/4”
Swing Over Cross Slide… 9-3/8”
Swing in Gap…………. 24”
Dist Between Centers….. 50”
Spindle Nose…………. D1-6
Spindle Hole…………. 2-3/16”
Bed Width……………. 11”
Spindle Speeds(VS)……. 25-2000 RPM
Threading……………. Inch / Metric
Motor Size…………… 7-1/2 HP – 220V – 3 Phs
Tailstock Taper………. #4 MT
Weight………………. 3,740 Lbs (APPROX.)
Dimensions…………… To be Advised
EQUIPPED WITH:
MACHINE FEATURES:
Variable Speed
2-3/16 Spindle Hole
Gap Bed Design
Hardened & Grounded Head Stock Gears
Hardened & Ground Bed Ways
Turcite Covered Carriage Ways
Overload Feed Clutch
Constant Horsepower
STANDARD EQUIPMENT
Full Length Rear Splash Guard
(2) #4 MT Dead Centers
Back Plate
Foot Brake
Foot Brake
(4) Way Tool Post
Thread Dial
Disc Clutch
Tools
Manual
OPTIONAL ACCESSORIES AVAILABLE: P.O.R.
8” – 3 Jaw “Semi Steel” Chuck
10” – 3 Jaw “Semi Steel” Chuck
10” – 4 Jaw “Semi Steel” Chuck
12” – 4 Jaw “Semi Steel” Chuck
Taper Turning Attachment … Installed
Lever Collet Attachment … Installed
5C Collet Set (1/8” – 1-1/8” x 1/16”)
“Aloris Type” Q.C. Tool Post w/ (5) Holders
Chuck Guard w/Limit Switch
6” Steady Rest w/Rollers
Follow Rest w/Bronze Tips
Micro Carriage Stop
Drill Chuck w/Arbor
Upgrade To 440V – 3 Phs
Newall Digital Readout … Installed
COMMENTS: Mfg. In Europe
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
