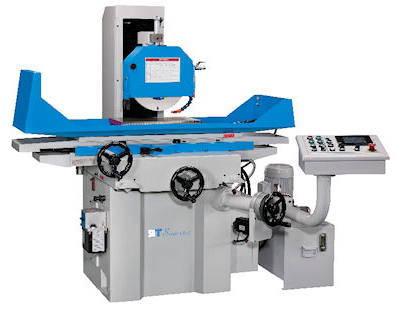

Model: SG-3A
Type: (3) Axis Automatic
Year: New
SPECIFICATIONS:
Table Size………………… 10” x 20”
Longitudinal Travel…….(X).. 24”
Cross Travel…………..(Y).. 11”
Vertical Travel………..(Z).. 19.2
Center Line Spindle To Table… 19.2”
Wheel Size………………… 14” x 1” x 5”
Motor Size Voltage…………. 3 HP – 220/440V – 3 Phs
Axis……………………… (3)Axis Automatic
Table Weight Capacity………. To Be Advised
Weight……………………. 3740 Lbs
EQUIPPED WITH:
MACHINE FEATURES:
(3) Axis Hydraulic
Automatic Incremental Down Feed
Grinding Cycles:
Automatic, Surface, Plunge & Crisscross
Table Traverse
Hydraulic Table – “Roller Bearing”
(1) Motorized Cross Feed
Cast Iron Base
Double-V Turcite Cross Ways
Hardened & Ground Ways
Class “7” Spindle Bearings
STANDARD EQUIPMENT
10” x 20” Electro Magnetic Chuck w/Auto Demagnitizer
Chuck Control w/Variable Holding Power
Coolant System w/Paper Filter
Splash Guard
Table Mounted Dresser
Auto Lube System
Balancing Arbor
Tool Box & Tools
Halogen Work Light
OPTIONAL ACCESSORIES:
Electro Magnetic Chuck w/Auto Demagnetizer
O.S. Walker Fine Pole Permanent Chuck
O.S. Walker Chuck Control
Cross Micofeed
Vertical Microfeed
Spare Wheel Flange
Parallel Dressing Attachment (manual)
Magnetic Separator Coolant System
Magnetic Separator & Paper Filter Coolant System
Radius Dressing Attachment
Angle Dressing Attachment
(2) Axis Sony Digital Readout – Installed
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-4644376
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
