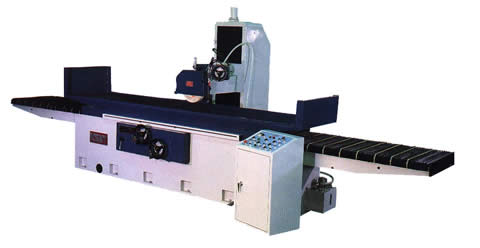

Model: KGS-615 -AHD
Type: (3) Axis Automatic
Year : New
SPECIFICATIONS:
Table Size………………… 24” x 60”
Longitudinal Travel…….(X).. 68”
Cross Travel…………..(Y).. 26-7/16”
Vertical Travel………..(Z).. 23-5/8”
Center Line Spindle To Table… 23-5/8″
Table Load w/Chuck…………. 2860 Lbs
Wheel Size………………… 14” x 2” x 5”
Axis……………………… (3) Axis Automatic
Motor Size………………… 10 HP – 220/440V – 3 Phs
Weight……………………. 17,400 Lbs
Dimensions (LxWxH)…………. 186″ x 90″ x 98″
EQUIPPED WITH:
24” x 60” Semi-Fine Electro-Magnetic Chuck & Control
Variable Power Chuck Control
Magnetic Separator & Coolant System
Hydraulic Parallel Dresser
Table Dresser
Full Length Rear Splash Guard
Wheel Balancing Base & Arbor
Grinding Wheel
Wheel Flange
Tool Box & Tools
Halogen Work Light
MACHINE FEATURES:
(3) Axis Automatic
Column Traveling “Cross Feed”
Fully Automatic Cycle Control w/Spark-Out Time & Auto Stop
Cast Iron Base
Vee & Flat Turcite Table Ways
Double-V Turcite Cross Ways
P.L.C. Controlled Cross Feed
Auto Lube
Rapid Traverse to Wheel Head (AHD)
Auto Incremental Downfeed – Surface & Plunge Grinding
Precision Spindle – Angular Contact Bearings
OPTIONAL ACCESSORIES AVAILABLE:
Hydraulic Parallel Dresser
Extra Wheel Flange
Table Splash Guard
Magnetic Separator & Paper Coolant System
Hydraulic Oil Cooler
(1) Axis Sony Digital Read Out
(2) Axis Sony Digital Read Out
Installation & Set-Up
