10' x 1/2" SAHINLER ... DOUBLE PINCH PLATE ROLL
Click to enlarge
Home Rolls - New & Used Plate Rolls 10′ x 1/2″ SAHINLER … DOUBLE PINCH PLATE ROLL
8' x 1/2" SAHINLER ... DOUBLE PINCH PLATE ROLL
8' x 1/2" SAHINLER ... DOUBLE PINCH PLATE ROLL
Back to products
24" x 80"  SUPERTEC ... (2) AXIS AUTOMATIC
24" x 80" SUPERTEC ... (2) AXIS AUTOMATIC

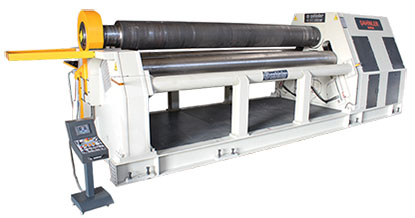

10′ x 1/2″ SAHINLER … DOUBLE PINCH PLATE ROLL

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: 4R-HSS
Type: Double Pinch
Year: New

SPECIFICATIONS:

Roll Length……………… 122”
Top Roll Diameter………… 12.60”
Rolling Cap. (Mild Steel)…. 5/8″
Pre-Bend Cap. (Mild Steel)… 1/2”
Min. Diameter (Rolling)…… 19”
Min. Diameter (Pre-Bend)….. 19”
Number of Rolls (Total)…… 4
Number of Rolls (Powered)…. 3
Rolling Speed (2)………… 5 & 16-1/2 FPM
Motor Size………………. 26 HP – 220/440V – 3 Phs
Weight………………….. 28,050 Lbs
Dimensions(LxWxH)………… 235” x 71” x 77”

EQUIPPED WITH:

Movable Control Console

Roll Adjustment & Rotation (Push Button)
Roll Speed (Switch)
Open/Close Hydraulic Drop End (Push Button)
Digital Readouts

Machine Perimeter E-Stop Cable
Machine & Console Mounted E-Stop Buttons
Cone Rolling Attachment (Reduced Capacity)

MACHINE FEATURES:

Double Pinch

Top And Side Rolls (Powered)
Bottom Roll (Non-Powered)

Hardened Rolls
Hydraulic Driven Rolls (Hydraulic Motor & Planetary Gear Reducer)
(2) Adjustable Side Rolls w/DRO
Pinch & Side Rolls Independently Adjustable
Leveling System To Insure Parallelism Of All (3) Adjustable Rolls
Forward & Reverse Rotation (Push Button)
Adjustable Pinch w/Readout
(2) Speed Rotation
Hydraulic Drop End w/Automatic Raise Of The Top Roll
Inclinable Pinch & Side Rolls For Cone Rolling

OPTIONAL ACCESSORIES:

NC & CNC Control
Overhead Support
Hydraulic Side Supports
Variable Speed
Ground & Polished Rolls
Hydraulic Plate Adjuster

COMMENTS:

“USA” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 12578 Category: Plate Rolls
