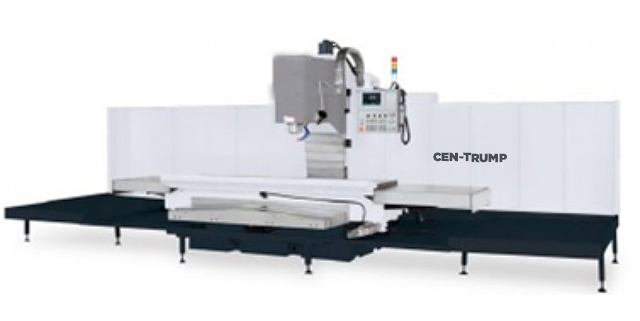

Model: BM-780-H
Type: VMC
Year: New
SPECIFICATIONS:
Table Size……………… 32” x 108”
Table Travel………..(X).. 98”
Table Travel………..(Y).. 33”
Head Travel…………(Z).. 27.5”
Spindle Nose To Table Top… 31.4”
Motor Size……………… 20 HP – 220V – 3 Phs
Spindle Speeds(V.S.)…….. 60 – 8000 RPM
Tool Changer……………. 20 ATC Armless
Spindle Taper…………… Cat 40
Table Load Capacity……… 4400 Lbs
Rapid Traverse………….. 250 IPM
Weight…………………. 22,320 Lbs
Control Type……………. Centroid M-400
EQUIPPED WITH:
Centroid M-400 (3) Axis Cnc Control
“Conversational” (Shop Floor Programming)
“G” Code
15” Color Monitor
Rs-232 & Ethernet Ports
(1) Gb Solid State Hard Drive
Power Draw Bar
Auto Lube
Coolant System
Halogen Work Light
Splash Guard
Leveling Bolts & Pads
Tool Box w/Tools
MACHINE FEATURES:
(3) Axis
Programable Spindle Speeds
(4) H & G “Box” Ways (Y & Z)
Automatic Tool Changer (Atc) Optional
Bed Ways – Turcite Coating
Meehanite Casting
“Double Nut” – Precision Ball Screws
(1) Year “Machine Parts” Warranty
(1) Year “Control” Warranty
OPTIONAL ACCESSORIES AVAILABLE:… P.O.R.
6” IMCO (Kurt Type) Vise
6” Precision Kurt Vise
(6) End Mill Adaptors (3/16” – 1”)
(52) PC. Clamping Kit
Table Guard
10” Riser Block (Engine Block Job Shop)
32 KVA Transformer (440/480V)
(20) Station Automatic Tool Changer Magazine w/Software
Mist Coolant System
Full Enclosure
SOFTWARE OPTIONS (CENTROID CONTROL) … P.O.R.
Drilling Cycles
Rigid Tapping
Multiple Work Coordinate System
User Definable Macros .& Sub Programs
Compression Tapping
Scaling & Mirroring
Unlimited Part Program Size
4th Axis Software
Coordinate System Rotation
In, CAD Drawing Input Software
Cutter Compensation
Intercon Off-Line Conversational Program (For Desktop PC)
Engraving Software
DIGITIZING & PROBING
2D & 3D Digitizing Software (Includes Mold Magic Software)
DP-4 Probing Package
TT-1 Tool Touch Off Kit
D4 Probing Package
TT-1 Tool Touch Off Kit
Work Coordinate System
OPTIONAL ACCESSORY
(100) Step MPG
Installation & Set-Up… Per Day
Plus Travel Expenses
COMMENTS: Control Mfg. In U.S.A.
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B. Location
TERMS: Check w/Order
All prices subject to change without notice
