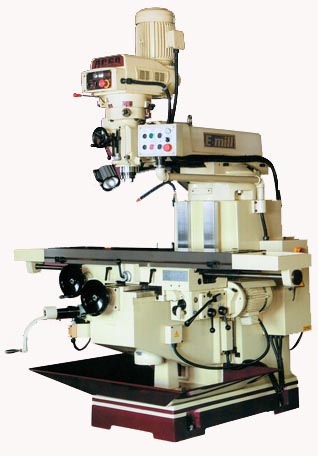

Model: 6-VK … Electronic Variable Speed
Type: Knee
Year: New
SPECIFICATIONS:
Table Size……………. 12” X 60”
Longitudinal Travel..(X).. 47-1/4”
Cross Travel………(Y).. 15”
Vertical Travel……(Z).. 19-3/4”
Quill Travel………….. 5”
Quill Diameter………… 4″
Spindle to Table………. 3-2/4″ – 19-2/5”
Spindle Taper…………. #40
Spindle Speeds (EVS)…… 4500 RPM
Motor Size……………. 5 HP – 220V – 1 or 3 Phs
Table Weight Capacity….. 900 Lbs
Weight……………….. 4960 Lbs
Dimensions……………. 83″(l) x 82″(w) x 95″(h)
EQUIPPED WITH:​
Power Elevation to Knee
Coolant System
Pendant Control
One Shot Lube
Halogen Work Light
Operation Manual
Tool Box w/Tools
MACHINE FEATURES:
Heavy Duty
Head Swives 90 Degree (Left & Right)
Back Gear for Heavy Cutting
Electronic Variable Speed (Spindle Speeds)
NOTE: Increase-Decrease Speed by Controller Knob
Meehanite Casting
Hardened & Ground Ways on X & Y Axis
Hardened & Ground Table
Turcite Coating on X & Y Axis Slideways
Power Feeds X & Y
Quill Power Feed Z Axis
Spindle Supported by Class 7 Bearings
Hard Chrome Quill
Dove Tail Ways on X, Y & Z Axis
OPTIONAL ACCESSORIES AVAILABLE … (P.O.R.):
(2) Axis Newall Digital Readout “DP-700”
(3) Axis Newall Digital Readout “DP-700″
(11) Pcs Collet Set (1/4” – 3/4”)
(52) Pcs Clamp Kit
Automatic Draw Bar
12″ Rotary Table (Vertical & Horizontal)
6″ Kurt Precision Vise
6” Kurt Type Vise
440V – 3 Phs
Mitutoyo Quill “LCD” Readout
Horizontal Milling Attachment
