X=43" - Y=35.4" - Z=27.6" CEN-TRUMP ... HMC
Click to enlarge
Home Milling Machines - New and Used HMC's New & Used X=43″ – Y=35.4″ – Z=27.6″ CEN-TRUMP … HMC
X=40" - Y=30" - Z=28" MACHINING SYSTEMS ... HMC
X=40" - Y=30" - Z=28" MACHINING SYSTEMS ... HMC
Back to products
X=60" - Y=40" - Z=28" MACHINING SYSTEMS ... HMC
X=60" - Y=40" - Z=28" MACHINING SYSTEMS ... HMC

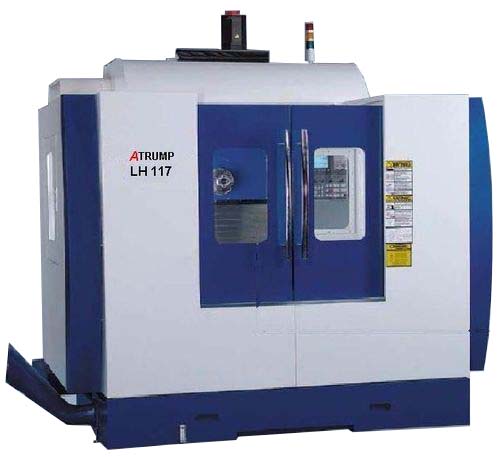

X=43″ – Y=35.4″ – Z=27.6″ CEN-TRUMP … HMC

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: LH-117 … Centroid M-400 CNC Control
Tooling Stations: 24 Stations
Year: New

SPECIFICATIONS:

Table Size……………… 27.6″ x 49.6″
Table Weight Capacity:…… 1320 Lbs
Table Travel………..(X).. 43.3”
Table Travel………..(Z).. 35.4”
Vertical Head Travel…(Y).. 27.6”
Rapid Traverse:…………. “X” & “Z” 700 IMP -“Y” 400 IPM
Spindle Nose To Table Top:.. 4.6” TO 32.3”
Spindle Taper…………… CAT 50
Auto Tool Changer:………. 24 Station Arm Type
Spindle Speeds:…………. 4500 RPM
Motor Size:…………….. 25 HP – 208/230V – 3 Phs
Weight:………………… 14,080 Lbs
Control Type:…………… Centroid M 400
Dimensions:…………….. 116″(l) x 135″(w) x 112″(h)

EQUIPPED WITH:

Centroid M-400
Shop Floor Programming
RS-232 Interface
Built in 20” Rotary Table
Splash Guard
Coolant System
Auto Lube
Work Light
Leveling Bolts & Plate
Tools w/Tool Box
Manuals

OPTIONAL ACCESSORIES AVAILABLE … P.O.R.

Full Machine Enclosure (Above Picture w/Enclosure)
Chip Auger (Only w/Full Enclosure)
Transformer (440/480V)
Coolant thru Spindle
Mist Coolant System
Upgrade from 25 HP to 30 HP
(52) pc Clamp Kit
(20) pc Cat 40 Retension Knobs
6” Kurt Type Vise w/Swivel Base
6” Kurt Vise

SOFTWARE OPTIONS (CENTROID CONTROL)

Rigid Tapping
User Definable Macros & Sub Programs
Compression Tapping
Scaling & Mirroring
Unlimited Part Program Size
4th Axis Software
Coordinate System Rotation
DXF in, CAD Drawing Input Software
Cutter Compensation
Intercon Off-Line Conversational Program (for Descktop PC)
BCD Tool Change Output
Engraving Software

DIGITIZING & PROBING

2D & 3D Digitizing Software (Includes Mold Majic Software)
DP-4 Probing Package
TT-1 Tool Touch Off Kit
Tool Room Package
DP-4-Probing Package
TT-1 Tool Touch Off Kit
Work Coordinate System

ACCESSORY

(100) Step MPG Handwheel
Installation & Set-Up
NOTE:  Plus Travel Expense

COMMENTS:  Control Mfg. In USA

“U.S.A.” IMPORTER DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 7431 Category: HMC's New & Used
