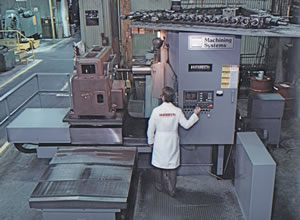

Model: HMC 40 … Fanuc Oi CNC Control
Tooling Stations: 48 Stations
Year: New
SPECIFICATIONS:
Rotary Table Size:……….. 28” x 28”
Degree Of Table Rotation:…. 1 Degrees
Table Weight Capacity:……. 4,000 Lbs
Table Travel…………(X).. 40” (Longitudinal)
Table Travel…………(Z).. 28” (Cross)
Vertical Head Travel….(Y).. 30”
Rapid Traverse:………….. 480 IPM
Spindle Taper……………. CAT 50
Spindle Nose To Table Top:… 30″
Spindle Speeds:………….. 0-3000 RPM
Auto Tool Changer:……….. 48 Station … Side Arm
Motor Size:……………… 30 HP – AC
Weight:…………………. 35,000 Lbs
Control Type:……………. Fanuc Oi
EQUIPPED WITH:
Fanuc Oi CNC Control
Precision 360 Degrees, Rotary Table (B Axis) w/
1 Degrees. Indexing
H & G Box Square Ways
Double Column Design
Way Covers & Wipers On All Axis
Precision Ball Screws
Spindle Load Meter
Coolant System
Coolant Thru Spindle
Heavy Fabricated Base
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
Pallet System … (4) 28” X 28” Pallets
(76) ATC
Chip Conveyor
Renishaw MP-3 Probe Package
“Full Machine” Enclosure
COMMENTS: Mfg. in U.S.A.
