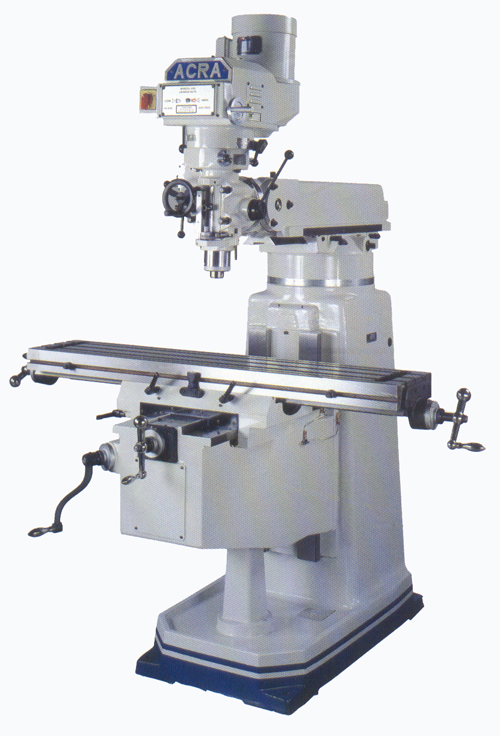

X=37" - Y=17" - Z=16" ACRA ... VERTICAL MILL
X=37" - Y=17" - Z=16" ACRA ... VERTICAL MILL

X=37″ – Y=17″ – Z=16″ ACRA … VERTICAL MILL

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: AM-3-VVS
Type:  Knee Mill
Year: New

SPECIFICATIONS:

Table Size……………. 12-1/2” x 54”
Longitudinal Travel..(X).. 37”
Cross Travel………(Y).. 17”
Vertical Travel……(Z).. 16”
Quill Travel Dist……… 5”
Spindle Taper…………. R8 or #30
Spindle Speeds(2)……… 80 – 5440 RPM
Motor Size – Voltage…… 3 HP – 220/440V – 3 Phs
Table Weight Capacity….. 900 Lbs
Weight……………….. 2900 Lbs
Dimensions……………. 56-1/2″(l) x 68-1/2″(w)

STANDARD EQUIPMENT

Quill Power Feed
Reverse Switch
Spindle Brake
Operation Manual

MACHINE FEATURES

Step Pulley
Double V Ways
Meehanite Casting
H & G Table & Ways
Turcite Coating on X & Y Axis Slideway
Hard Chrome Quill

OPTIONAL ACCESSORIES:

(2) Axis Newall D700 Digital Readout
Installation of Digital Readout
Table Power Feed – “VS” (X)
Table Power Feed – “VS” (Y)
6″ Kurt Precision Vise
6″ Vise – Kurt Type
(5) Piece Collet Set (1/4″ x- 3/4″)
Coolant & Chip Tray
Automatic Draw Bar
Auto Lube

“U.S.A.”  IMPORTER –  DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at  614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 14046 Category: Bridgeport Type Mills New & Used
