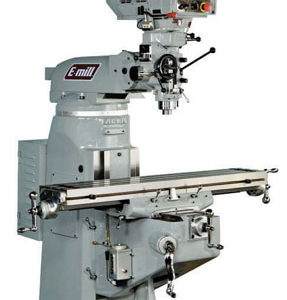

Model: 2-VSG … Variable Speed
Type: Knee Mill
Year: New
SPECIFICATIONS:
Table Size……………. 9” x 49”
Longitudinal Travel..(X).. 36”
Cross Travel………(Y).. 12”
Vertical Travel……(Z).. 16”
Quill Travel………….. 5”
Dist Spindle to Table….. 16-3/4″
Spindle Taper…………. R-8
Spindle Speeds (VS)……. 70 – 4200 RPM
Table Weight Capacity….. 600 Lbs
Motor Size-Voltage…….. 3 HP – 220V – 3 Phs
Weight……………….. 2600 Lbs
Dimensions……………. 101″L x 70″W x 82″H
STANDARD EQUIPMENT:
Variable Speed
(2) Axis (Sino) Digital Readout
“X” Axis Powerfeed
Way Covers
Halogen Work Light
Manual Draw Bar
One Shot Lube
Operation Manual
MACHINE FEATURES:
Meehanite Casting
H & G on X & Y Bed Way and Table
Turcite Coating on X & Y Axis Bed Way
Dove Tail Bed Ways
Spindle Supported by Class 7 Bearings
(0.0002” Runout)
Back” Gear for Heavy Cutting
(4) Way Tilt Head
90 Degree Left & Right
45 Degree Front & Back
Precision Lead Screw
Hard Chrome Quill
OPTIONAL ACCESSORIES … (P.O.R.):
(2) Axis Newall Digital Readout
(3) Axis Newall Digital Readout
Chip Pan
(52) pc Clamp Set
Right Angle Attachment
6″ Riser Block
8″ Riser Block
(11) R-8 Collets
Table Power Feed (Y)
Table Power Feed (Z)
6” Kurt Precision Vise
6” Vise – Kurt Type w/Swivel Base
Automatic Draw Bar
Mitutoyo Quill “LCD” Readout
Phase Converter 3 Phs to 1 Phs
​​“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
