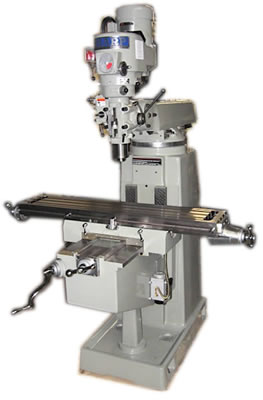

Model: TMV (VS)
Type: Knee Mill
Year: New
SPECIFICATIONS:
Table Size……………. 10” x 50”
Longitudinal Travel..(X).. 35”
Cross Travel………(Y).. 16.3”
Vertical Travel……(Z).. 15.3”
Quill Travel………….. 5”
Dist. Spindle To Table…. 1.6” – 16.9”
Spindle Taper…………. R-8
Spindle Speeds (V.S.)….. 60 – 4500 RPM
Motor Size – Voltage…… 3 HP – 220/440V – 3 Phs
Table Weight Capacity….. 650 Lbs
Weight……………….. 3000 Lbs
Dimensions……………. 70″(l) x 75″(w) x 88″(h)
EQUIPPED WITH:
Draw Bar (Manual)
Back & Front Way Covers
One Shot Lube
Tool Box w/Tools
Manuals
MACHINE FEATURES:
Meehanite Casting
H & G Chromed Box Ways on (Y & Z)
Double Lock Nut on Feed Screws
Dual Fan Head Cooling System
Double Table Lock
Class 7 Spindle Bearings
Head Tilts 90Ëš Left & Right & 45Ëš Up & Down
OPTIONAL ACCESSORIES:
Newall DRO “DP-700″…(2 Axis)
Installation of DRO…(2 Axis)
Newall DRO “DP-700″…(3 Axis)
Installation of DRO…(3 Axis)
Power Draw Bar
Halogen Work Light
Auto Lube
(52) Piece Clamping Kit
(11) Piece Collet Set (1/4″ – 3/4” x 1/16)
Table Power Feed – “VS” (X)
Table Power Feed – “VS” (Y)
6″ Kurt Precision Vise
6″ Vise – Kurt Type w/Swivel Base
Chip Pan (Splash Guard)
Coolant w/Pump
