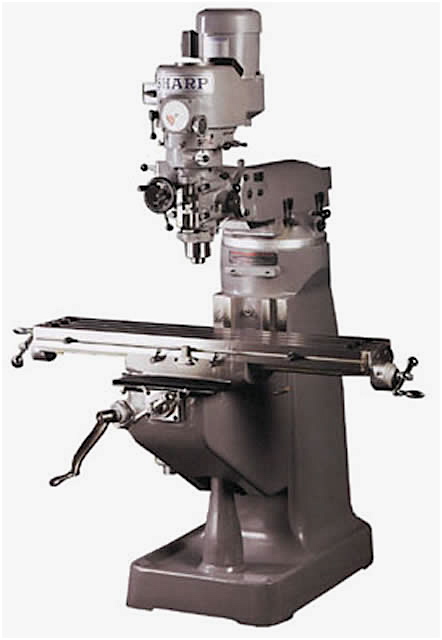

X=30" - Y=12" - Z=16" SHARP ... VERTICAL MILL (VS)
Click to enlarge
Home Milling Machines - New and Used Bridgeport Type Mills New & Used X=30″ – Y=12″ – Z=16″ SHARP … VERTICAL MILL (VS)
16"  DAKE ... BLADE WELDER
16" DAKE ... BLADE WELDER
Back to products
X=37" - Y=12" - Z=16" SHARP ... VERTICAL MILL (VS)
X=37" - Y=12" - Z=16" SHARP ... VERTICAL MILL (VS)

X=30″ – Y=12″ – Z=16″ SHARP … VERTICAL MILL (VS)

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: LMV-42
Type: Knee Mill
Year: New

SPECIFICATIONS:

Table Size……………. 9” x 42”
Longitudinal Travel..(X).. 30”
Cross Travel………(Y).. 12”
Vertical Travel……(Z).. 16”
Quill Travel………….. 5”
Dist. Spindle to Table…. 2-1/8” – 18”
Spindle Taper…………. R-8
Spindle Speeds………… 60 – 4500 RPM
Motor Size – Voltage…… 3 HP – 220/440V – 3 Phs
Table Weight Capacity….. 600 Lbs
Weight……………….. 2400 Lbs
Dimensions……………. 57″(l) x 51″(w) x 82.5″(h)

EQUIPPED WITH:

Draw Bar (Manual)
Back & Front Rubber Way Covers
One Shot Lube
Tool Box w/Tools
Manuals

MACHINE FEATURES

Meehanite Casting
H & G Chromed Box Ways on (Y & Z)
Double Lock Nut on Feed Screws
Dual Fan Head Cooling System
Double Table Lock
Class 7 Spindle Bearings
Head Tilts 90Ëš Left & Right & 45Ëš Up & Down

OPTIONAL ACCESSORIES:

Newall Dro “DP-700″… (2 Axis)
Installation of DRO… (2 Axis)
Newall Dro “Dp-700″… (3 Axis)
Installation of DRO… (3 Axis)
Power Draw Bar
Halogen Work Light
Auto Lube
(11) Piece Collet Set (1/4″ – 3/4” x 1/16)
Table Power Feed – “VS” (X)
Table Power Feed – “VS” (Y)
Table Power Feed – “VS” (Z)
6″ Kurt Precision Vise w/Swivel Base
6″ Vise – Kurt Type

COMMENTS:
“USA”  IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL: IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 4133 Category: Bridgeport Type Mills New & Used
