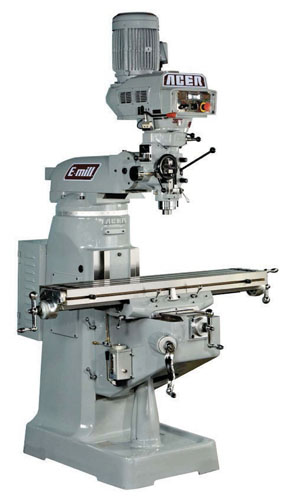

Model: 3-VS … Variable Speed
Type: Knee Mill
Year: New
SPECIFICATIONS:
Table Size…………….. 9” x 42”
Longitudinal Travel…(X).. 28”
Cross Travel……….(Y).. 12”
Vertical Travel…….(Z).. 16”
Quill Travel…………… 5”
Quill Diameter…………. 3-3/8″
Spindle Taper………….. R-8
Spindle Speeds (VS)…….. 4500 RPM
Motor Size…………….. 3 HP – 220V – 3 Phs
Table Weight Capacity…… 450 Lbs
Weight:……………….. 2400 Lbs
Dimensions…………….. 87″(l) x 59″(w) x 88″(h)
EQUIPPED WITH:​
Back & Front Way Covers
Draw Bar
One Shot Lube
Operation Manual
Tool Box w/Tools
MACHINE FEATURES:
Variable Frequency Inverter Drive
Meehanite Casting
Hardened & Ground Ways on X & Y Axis
Hardened & Ground Table
(4) Way Tilt Head
45 Degrees (Front to Back)
90 Degrees (Left to Right)
Spindle Supported by Class 7 Bearings
Hard Chrome Quill
Dove Tail Ways on X, Y & Z Axis
OPTIONAL ACCESSORIES AVAILABLE … (P.O.R.):
(2) Axis Newall Digital Readout “DP-700”
(3) Axis Newall Digital Readout “DP-700″
(11) Pcs Collet Set (1/4” – 3/4”)
Table Power Feed (X) Axis
Table Power Feed (Y) Axis
Table Power Feed (Z) Axis
9″ x 49″ Table
Automatic Draw Bar
12″ Rotary Table (Vertical & Horizontal)
Horizontal Milling Attachment
1/2″ Jacobs Chuck w/R-8 Arbor
6″ Kurt Precision Vise
6” Kurt Type Vise
4″, 6″ or 8″ Riser Blocks
Chip Pan
Halogen Work Light
440V – 3 Phs
Coolant System
Mitutoyo Quill “LCD” Readout
“USA” DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice.
