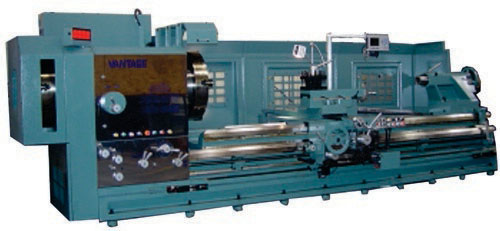

70" x 160" VANTAGE ... "BIG BORE" LATHE 12.51" SPINDLE HOLE
Click to enlarge
Home Lathes New and Used Lathes - Conventional 70″ x 160″ VANTAGE … “BIG BORE” LATHE 12.51″ SPINDLE HOLE
325 TON x 12' STANDARD ... PRESS BRAKE
325 TON x 12' STANDARD ... PRESS BRAKE
Back to products
10 GA x 6' TENNSMITH ... SHEET METAL SHEAR
10 GA x 6' TENNSMITH ... SHEET METAL SHEAR

70″ x 160″ VANTAGE … “BIG BORE” LATHE 12.51″ SPINDLE HOLE

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: PB-70/V-12-160
Type: Big Bore Lathe
Year: New

SPECIFICATIONS:

Headstock……………. Geared Head
Swing Over Bed……….. 70”
Swing Over Cross Slide… 57”
Swing In Ga…………. 90”
Dist. Between Centers…. 160”
Spindle Nose…………. A2-20
Spindle Hole…………. 12.51”
Bed Width……………. 32” (W/Auxilary Guide)
                           28” (W/O Auxiliary Guide)
Spindle Speeds………… (4) Ranges Inverter Drive 12-400 RPM
Threading…………….. Inch/Metric
Motor Size……………. 50 HP-440V
Weight……………….. 37,950 Lbs
Dimensions……………. To be Advised

EQUIPPED WITH:

MACHINE FEATURES

Parts & Service Provided by IMCO
Heavy Duty – Massive Construction
High Accuracy
Operator “Friendly”
Gears & Shafts – Hardened & Ground
Bed & Cross Slide – Hardened & Ground
Gap Bed
(6) Way Power Feed & Rapid Traverse (Apron)
Auxillary Bed Ways
Electric Brake (Spindle)
(2) Speed “Tailstock” Quill
12000 LBS Capacity Between Centers w/o Steady Rest
28” – 4 Jaw Chuck (12” Bore)

NOTE: Spindle Speed 12 – 400 RPM (4) Range Inverter Drive

(4) Way Toolpost
Automatic Lubrication System
Followable Rear Splash Guard
Coolant System
Front Spindle Chuck Guard
Halogen Work Light
Low Voltage Control
Tool Box w/Tools

COMMENTS:  Mfg. in Taiwan To American / Japanese Quality

“USA” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS: Check w/Order

All prices subject to change without notice

SKU: 9528 Category: Lathes - Conventional
