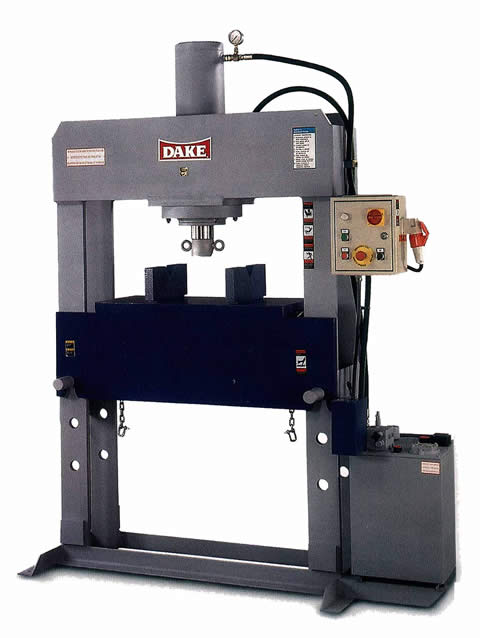

Model: Force 70
Type: Motorized H-Frame
Capacity: 70 TON
Year: New
SPECIFICATIONS:
Capacity…………….. 70 Ton
Ram Travel…………… 19”
Advance Speed………… 42″ IPM
Press Speed………….. 4″ IPM
Minimum Ram To Table….. 7-1/4”
Maximum Ram To Table….. 32”
Between Uprights……… 35”
Between Table Channels… 8”
Base………………… 63″ x 27″
Height………………. 88″
Motor……………….. 2 HP – 220/440V – 3Phs
Weight………………. 1,595 Lbs
EQUIPPED WITH:
Double Acting Cylinder
Ram has Lifting Eyes
Welded Heavy Plate Steel Frame
Rapid Advance of Ram
(2) Forged Steel Tables Plate
Pressure Gauge
Lifting Chain
COMMENTS:
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part?
Have a Technical Question?
CALL: IMCO at 614-436-4376
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
