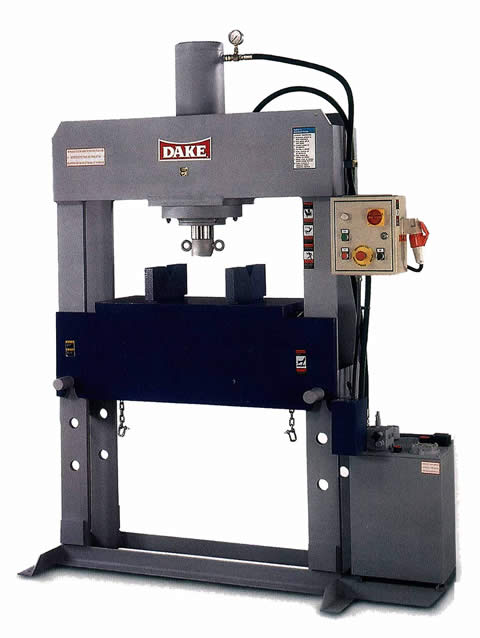

Model: Force 40
Type: Motorized H-Frame
Capacity: 40 TON
Year: New
SPECIFICATIONS:
Capacity…………….. 40 Ton
Ram Travel…………… 19”
Advanced Speed……….. 68″ IPM
Press Speed………….. 7″ IPM
Minimum Ram To Table….. 7”
Maximum Ram To Table….. 32”
Between Uprights……… 35”
Between Table Channels… 8”
Base………………… 62″ x 27″
Height………………. 88″
Motor……………….. 2 HP – 220/440V – 3Phs
Weight………………. 1,210 Lbs
EQUIPPED WITH:
Double Acting Cylinder
Ram has Lifting Eyes
Welded Heavy Plate Steel Frame
Rapid Advance of Ram
(2) Forged Steel Tables Plate
Pressure Gauge
Lifting Chain
COMMENTS:
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part?
Have a Technical Question?
CALL: IMCO at 614-436-4376
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
