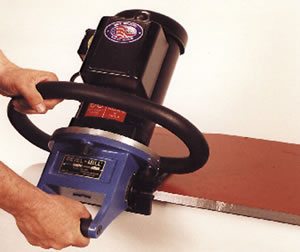

Model: 9000
Year: New
SPECIFICATIONS:
Cutting Capacity:
Max. Bevel ……….. 1-1/4”
Min. Bevel ……….. 0.0”
Min. Work Thickness… 0.125”
Bevel Angle ………. 15 – 45 Degrees
V-Block Length ………. 8-3/4”
Number Of Inserts ……. 10
Motor ………………. 1-1/2 HP-110V-1 Phs
Weight ……………… 50 Lbs
EQUIPPED WITH:
Heavy Duty Motor
Adjustable Depth Of Cut
Works Most Materials Machinable w/Carbide
Bevels Materials As Thin As 3/16” For Clean Burr Free Edges
Can Be Inverted To Work Lower Edge Of Plates
Self Supporting On The Work Piece
COMMENTS:
Hand Head
Mfg. In U.S.A.
