1/4" HECK/CEVISA ... BEVELER
Click to enlarge
Home Deburring & Beveling Machines Beveling Machines 1/4″ HECK/CEVISA … BEVELER

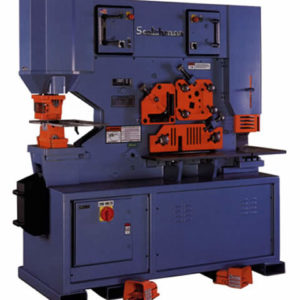

85 TON SCOTCHMAN ... IRONWORKER - DUAL OPERATOR
85 TON SCOTCHMAN ... IRONWORKER - DUAL OPERATOR
Back to products
7/8" HECK ... BEVELER
7/8" HECK ... BEVELER

1/4″ HECK/CEVISA … BEVELER

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: CHP-6

Year: NEW

SPECIFICATIONS:

Speed of Bevel ……… 70”/minute
Max Depth of Bevel ….. 1/4” (.250”)
Angle ……………… 30 Degrees
Min. Plate Thickness … 0.118”
Max. Plate Thickness … 5/8” (.625”)
Min. Inner Diameter …. 3-15/16” (3.937”)
Motor ……………… 3/4 HP – 220/440V – 3 Phs
Weight …………….. 75 Lbs

EQUIPPED WITH:

Self Propelled
Hands Free Beveling
30 Degree Beveling Standard
Change Bevel Angle with Optional Rollers (30, 37.5, & 45 Degree)
Shear Type Cutting
Sharpen able Cutters
Can be used Bench Mounted, On Castors, or Suspended from a Crane/Hoist
Work Bottom Edges by Inverting

COMMENTS:

DISTRIBUTION & PARTS CENTER

Need A Part ?
Have A Technical Question ?

CALL: IMCO At 614-914-5087

F.O.B.: Columbus, Ohio

TERMS: Check w/Order

All prices subject to change without notice

SKU: 5384 Category: Beveling Machines
