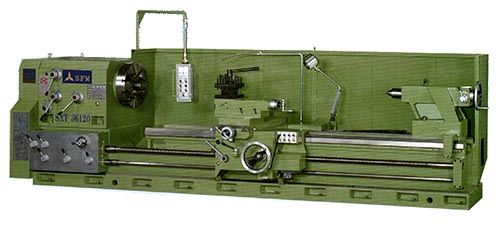

Model: SHT
Type: Big Bore Lathe
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 65”
Swing Over Cross Slide… 53”
Swing in Gap…………. 86”
Dist Between Centers….. 120”
Spindle Nose…………. A2-15
Spindle Hole…………. 6”
Bed Width……………. 33”
Spindle Speeds (16)…… 2.5 – 250 RPM
Threading……………. Inch / Metric
Motor Size…………… 25 HP – 220/440V – 3 Phs
Tailstock Taper………. #7 MT
Gross Weight…………. 24,000 Lbs
Shipping Dimensions…… To Be Advised
EQUIPPED WITH:
MACHINE FEATURES:
6” Spindle Hole
Gap Bed Design
H & G Head Stock Gears
H & G Bedways
Main Spindle Equipped w / 3 Precision Bearings
Auto Lubrication In Head Stock
STANDARD EQUIPMENT:
25” – 3 Jaw Chuck
40” – 4 Jaw Chuck
Carriage Auto Kick-Out
Full Length Splash Guard
(4) Way Toolpost
Center Sleeve
(2) Centers
Work Light
Coolant System
Manual Lube
Operation Manual
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
