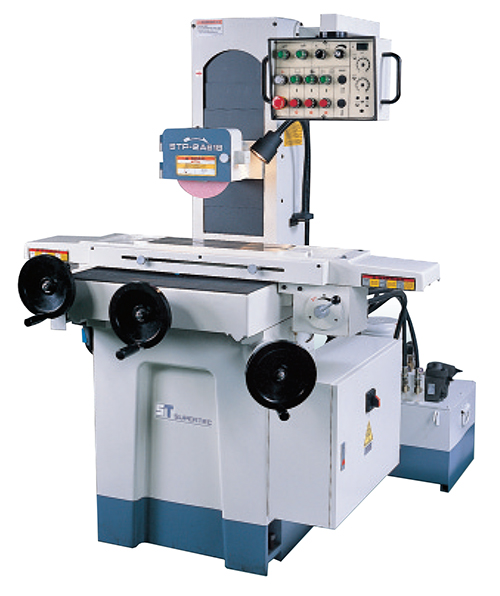

Model: STP 1A
Year: New
SPECIFICATIONS:
Table Size………………… 6” x 18″
Longitudinal Travel…….(X).. 19”
Cross Travel…………..(Y).. 6.6”
Vertical Travel………..(Z).. 19”
Center Line Spindle To Table… 19”
Wheel Size………………… 8” x 1/2” x 1-1/4”
Motor Size Voltage…………. 3 HP – 220V Or 440V – 3 Phs
Axis……………………… (1)Axis Automatic
Table Weight Capacity………. To Be Advised
Weight……………………. 1920 Lbs
EQUIPPED WITH:
MACHINE FEATURES:
(1) Axis Hydraulic
Table Traverse
Hydraulic Table – “Roller Bearing”
Cast Iron Base
Double-V Turcite Cross Ways
Hardened & Ground Ways
Class “7” Spindle Bearings
STANDARD EQUIPMENT:
Down Feed (Waist High)
Auto Lube System
Splash Guard
Dust Guard
Balancing Arbor
Grinding Wheel
Diamond Dresser
Wheel Extractor
Tool Box & Tools
Halogen Work Light
OPTIONAL ACCESSORIES
Grinding Wheel
Balancing Stand
Spare Wheel Flange
Permanent Magnetic Magnetic Chuck
Electro Magnetic Chuck w/Auto Demagnetizer
O.S. Walker Fine Pole Permanent Chuck
O.S. Walker Fine Pole Permanent Chuck w/Control
Paper Filter Coolant System
Magnetic Separator & Paper Filter Coolant System
Dust Collector
(1) Axis Sony Digital Readout – Installed
(2) Axis Sony Digital Readout – Installed
COMMENTS
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
Call: IMCO At 614-4644376
F.O.B. Columbus, Ohio
Terms: Check w/ Order
All prices subject to change without notice
