46" x 120" SUMMIT ... HOLLOW SPINDLE LATHE14" SPINDLE HOLE
Click to enlarge
HomeLathes New and UsedLathes - Conventional 46″ x 120″ SUMMIT … HOLLOW SPINDLE LATHE14″ SPINDLE HOLE
Previous product
46" x 80" SUMMIT ... HOLLOW SPINDLE LATHE14" SPINDLE HOLE
46" x 80" SUMMIT ... HOLLOW SPINDLE LATHE14" SPINDLE HOLE
Back to products
Next product
46" x 160" SUMMIT ... HOLLOW SPINDLE LATHE14" SPINDLE HOLE
46" x 160" SUMMIT ... HOLLOW SPINDLE LATHE14" SPINDLE HOLE

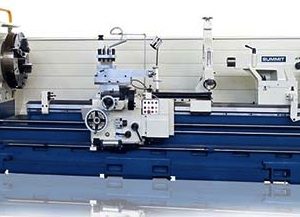

46″ x 120″ SUMMIT … HOLLOW SPINDLE LATHE14″ SPINDLE HOLE

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description

Model: 46-14
Type: Hollow Spindle Lathe
Year: New

SPECIFICATIONS:

Headstock……………. Geared Head
Swing Over Bed……….. 46”
Swing Over Cross Slide… 33”
Swing in Gap…………. 67.7”
Dist Between Centers….. 120”
Max Turning Length……. 120”
Spindle Nose…………. A2-20
Spindle Hole…………. 14”
Bed Width……………. 22”
Spindle Speeds (12)…… 3 – 250 RPM
Threading……………. Inch / Metric
Motor Size…………… 30 HP – 220/440V – 3 Phs
Tailstock Taper………. #6 MT
Gross Weight…………. 27,500 Lbs
Shipping Dimensions…… 213”(l) x 63”(w) x 97”(h)

EQUIPPED WITH:

(4) Way Rapid Traverse
Full Length Splash Guard
Chuck Guard
Steady Rest w/Rollers
Follow Rest
Coolant System
Taper Attachment
Halogen Work Light
Tool Box w/Tools
Manuals

MACHINE FEATURES:

14″ Spindle Hole
Heavily Ribbed Cast Bed & Base
H & G Extra Wide Bed Ways
Removable Gap
Feed Reversing at the Apron
(2) Speed Tailstock
Auto Lube

OPTIONAL ACCESSORIES:

20″ – 3 Jaw Bison Chuck (Semi Steel)
20″ – 3 Jaw Bison Chuck (Steel)
25″ – 4 Jaw Bison Chuck (Semi Steel)
25″ – 4 Jaw Bison Chuck (Steel)
Quick Change Tool Post w/(6) Holders
Newall Digital Readout – Installed

COMMENTS:  Mfg. In Europe

“USA” IMPORTER  – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 12908 Category: Lathes - Conventional
