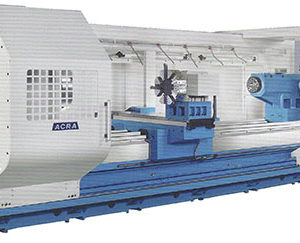

42" x 80" CUTMASTER ... FLAT BED LATHE
Click to enlarge
Home Lathes New and Used CNC Lathes - Flat Bed 42″ x 80″ CUTMASTER … FLAT BED LATHE
19" DAKE ... VERTICAL BANDSAW ... BLADE WELDER
19" DAKE ... VERTICAL BANDSAW ... BLADE WELDER
Back to products
12" x 48" (4') SHARP ... RADIAL DRILL
12" x 48" (4') SHARP ... RADIAL DRILL

42″ x 80″ CUTMASTER … FLAT BED LATHE

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: CST … Fanuc Oi-TD CNC Control
Spindle Hole: 12″ (Oil Country)
Type: Flat Bed
Year: New

SPECIFICATIONS:

Swing Over Bed:……….. 42”
Swing Over Cross Slide:… 27.5”
Swing In Gap:…………. No Gap
Dist Between Centers:….. 80”
Max. Turning Length:…… 90”
Spindle Nose:…………. A2-20
Spindle Hole:…………. 12”
Bed Width:……………. 26”
Spindle Speeds(VS)…….. 1-400 RPM
Spindle Ranges:……….. 4
Tailstock Taper:………. #6 MT
Rapid Traverse:……….. X-393 IPM…Z-315 IPM
Motor Size:…………… 40/50 HP
Control Type:…………. FANUC Oi-TD
Weight:………………. 35,400 Lbs
Dimensions……………. To be Advised

EQUIPPED WITH:

Fanuc Oi-TD CNC Control
12” (Oil Country) Spindle Hole
Note: 6″ – 9″ – 14″ & 16″ Holes Available
40/50 HP Spindle Motor
V-8 Automatic Turret (Hydraulic)
Safety Guard
Chip Conveyor (Rear)
(2.36” – 11.81”) Steady Rest (Roller Type)
(9.84” – 23.6”) Steady Rest (Roller Type)
Rotary Quill Tailstock … (Hydraulic)
Rear “Spindle Nose” Flange
Coolant System (High Pressure)
Spindle Oil Cooler
Heat Exchanger
Center & Center Sleeves
Tool Box With Tools
6” Boring Bar Holder

COMMENTS:

Max. Chucking Capacity

Between Centers:
    Without Steady Rest … 17,600 LBS
    With (1) Steady Rest … 22,000 LBS
With (4) Jaw Chuck Only … 2,640 LBS.

“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER:

Need a Part ?
Have a Technical Question ?

CALL: IMCO at 614-914-5087

F.O.B.: Location

TERMS: Check w/Order

All prices subject to change without notice

SKU: 8991 Category: CNC Lathes - Flat Bed
