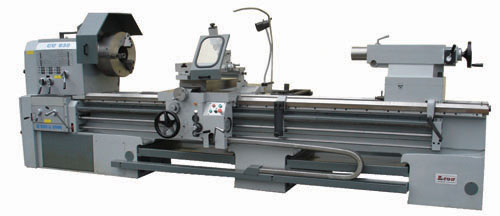

Model: 40236-CU
Type: Geared Head
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 40”
Swing Over Cross Slide… 27-3/4”
Swing In Gap…………. 45”
Dist. Between Centers…. 236”
Spindle Nose…………. D1-15
Spindle Hole…………. 6-1/16”
Bed Width……………. 22”
Spindle Speeds(16)……. 5.6 – 1000 RPM
Threading……………. Inch/Metric
Motor Size…………… 20 HP – 220V – 3 Phs
Tailstock Taper………. #6 MT
Weight………………. 19,700 Lbs
Dimensions…………… 317″(l) x 73″(w) x 77″(h)
EQUIPPED WITH:
15″ – 3 Jaw Chuck
24″ – 4 Jaw Chuck
Safety Guard for Chuck (will Accommodate 4 Jaw Chuck)
Lathe Will Only Start if Guard is Over Chuck
Splash-Chip Guard
Oil Pressure Sight Glasses
9″ Steady Rest
Follow Rest
Work Light
Leveling Screws
Inch/Metric Dials
Coolant Pump
MACHINE FEATURES
6-1/16″ Spindle Hole
“Monoblock” Solid Cast Bed
Gap Bed Design
H & G Head Stock Gears
H & G Bedways
Inch Metric Threading
(4) Way Rapid Traverse
Precision SKF Spindle Bearings
Tag Along Tailstock (for Power Drilling/Boring)
“Double Multi Disc” Clutch & Brake
Override Safety Clutch
Direct Reading Cross Slide Dial
Cut Away in Ways for Coolant
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
18″ Face Plate
6″ Steady Rest (Roller Bearing Type)
8″ Steady Rest (Roller Bearing Type)
12″ Steady Rest (Roller Bearing Type)
Taper Attachment
Aloris Quick Change Toolpost Set
(2) Axis Newall Digital Readout (Installed)
COMMENTS: Mfg. in Europe
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part?
Have a Technical Question?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
