Model: KGS-630-AHD
Year: NEW
SPECIFICATIONS:
Table Size………………… 24” x 120”
Longitudinal Travel…….(X).. 120”
Cross Travel…………..(Y).. 26”
Vertical Travel………..(Z).. 23”
Center Line Spindle To Table… 23-5/8
Wheel Size………………… 14” X 2” X 5”
Motor Size………………… 10 HP
Voltage…………………… 220/440V – 3 PHS
Axis……………………… (3) Axis Automatic
Table Weight Capacity……….
Weight……………………. 22,470 LBS
EQUIPPED WITH:
24″ x 120″ Electro-Magnetic Chuck (Semi Fine Pole)
Variable Power Chuck Control
Magnetic Separator & Coolant System (M2)
Hydraulic Parallel Dresser
Table Dresser
Full Length Rear Splash Guard
Wheel Balancing Base & Arbor
Grinding Wheel
Wheel Flange
Tool Box & Tools
Halogen Work Light
MACHINE FEATURES
Hydraulic Table
Column Traveling “Cross-Feed”
Fully Automatic Cycle Control w/Spark-Out
Cast Iron Base
Vee & Flat Turcite Table Ways
Double-V Turcite Cross Ways
P.L.C. Controlled Cross Feed
Auto Lube
Rapid Traverse to Wheel Head (AHD)
Auto Incremental Downfeed – Surface & Plunge Grinding
Precision Spindle – Angular Contact Bearings
COMMENTS:

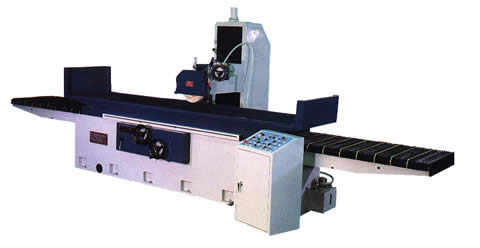

Catalog Photo
