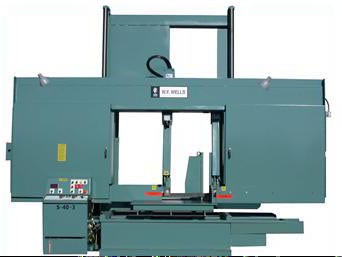

Model: S-40-3C
Year: New
Type: Double Column / Semi-Automatic
SPECIFICATIONS:
Cutting Capacity:
Rounds
At 90 Degrees… 37”
At 45 Degrees… 24″
Rectangles
At 90 Degrees… 37” x 40”
At 45 Degrees… 37″ x 24″
Work Height……….. 34”
Work Load Capacity…. 15,000 Lbs
Blade Size………… 2” x .063” x 29”
Blade Speed(V.S.)….. 60 – 500 SFPM
Motor Size………… 15 HP-208/460V-3 Phs
Weight……………. 9,200 Lbs
EQUIPPED WITH:
Double Column w/Linear Bearings (Max. Capacity & Rigidity)
“Semi-Automatic” Cut Cycle – Saw Frame Returns To Top Position Automatically
Variable Blade Speed
6 Degrees Head Cant
Feed Pressure Monitor/Regulator
Set Travel Up & Down (Can Be Set To Allow Notching Of Blocks)
Automatic Shut Off At End Of Cut
(1) Bi-Metal Blade
24” x 40” Out Feed Table
Hydraulic Powered Blade Brush
Hydraulic Positioned Guide Arm
Carbide Blade Guides (Spring Tensioned)
Full Guarding w/Interlocks
Hydraulic Vise w/Variable Pressure
Blade Break / Stall Switch
Blade Tension w/Indicator
Work Light
Blade Break/Stall Switch
Coolant System
Instruction & Parts Manuals
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
Hydraulic Hold Down, Saw Vise
Hydraulic Chip Conveyor (Auger Style)
Outboard Vise
Outboard Vise w/Hydraulic Hold Down
40” x 56” Discharge Table w/Stock Stop
High Speed Drive & Guides (570-3400 SFPM)
40” x 5’ Manual Conveyor
40” x 10’ Manual Conveyor
40” x 10” Hydraulic Powered Conveyor
COMMENTS: Mfg. In U.S.A.
