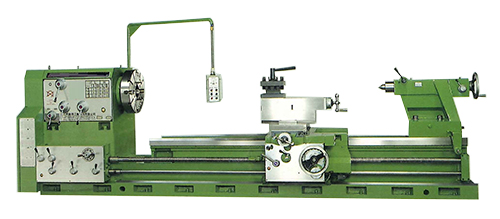

Model: SAT
Type: Geared Head
Year: New
SPECIFICATIONS:
Swing Over Bed……….. 36”
Swing Over Cross Slide… 25”
Swing in Gap…………. 55”
Dist Between Centers….. 80”
Max Turning Length……. 80”
Spindle Nose…………. A2-11
Spindle Hole…………. 6”
Bed Width……………. 22”
Spindle Speeds……….. 15 – 1000 RPM
Threading……………. Inch/Metric
Motor Size…………… 25 HP – 220/440V – 3 Phs
Tailstock Taper………. #5 MT
Gross Weight…………. 16,100 Lbs
Dimensions…………… To be Advised
EQUIPPED WITH:
Carriage Auto Kick-Out
(4) Way Toolpost
Center Sleeve
(2) Centers
Thread Dial
Halogen Light
Coolant System
Manual Lube
Tool Box w/Tools
Operation Manual
MACHINE FEATURES:
6″ Spindle Hole
Gap Bed Design
H & G Head Stock Gears
H & G Bedways
Main Spindle Equipped w/(3) Precision Bearings
Auto Lubrication in Head Stock
OPTIONAL EQUIPMENT (P.O.R.):
25″ – 3 Jaw “Semi-Steel” Chuck
25″ – 4 Jaw “Semi-Steel” Chuck
(2-3/4” – 16-15/16”) Steady Rest
(11“ – 23-1/2”) Steady Rest
Follow Rest
Taper Attachment
9” Spindle Bore (A2-15)
Upgrade to 30 HP Motor
Full Length Splash Guard
Newall Digital Readout
