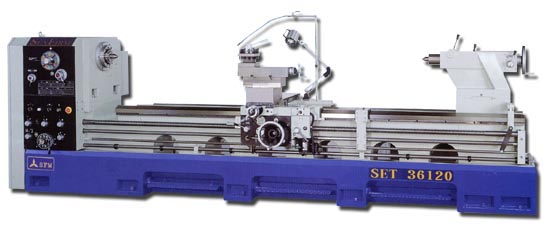

36" x 60" ACRA ... LATHE 6" SPINDLE HOLE
Click to enlarge
HomeLathes New and UsedLathes - Conventional 36″ x 60″ ACRA … LATHE 6″ SPINDLE HOLE
Previous product
36" x 80" ACRA ... LATHE 6" SPINDLE HOLE
36" x 80" ACRA ... LATHE 6" SPINDLE HOLE
Back to products
Next product
36" x 240" ACRA ... LATHE 6" SPINDLE HOLE
36" x 240" ACRA ... LATHE 6" SPINDLE HOLE

36″ x 60″ ACRA … LATHE 6″ SPINDLE HOLE

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description

Model: SET
Type: Geared Head
Year: New

SPECIFICATIONS

Swing Over Bed……….. 36”
Swing Over Cross Slide… 27”
Swing in Gap…………. 48”
Dist Between Centers….. 60”
Max Turning Length……. 60”
Spindle Nose…………. A2-11
Spindle Hole…………. 6”
Bed Width……………. 18”
Spindle Speeds……….. 15 – 1000 RPM
Threading……………. Inch/Metric
Motor Size…………… 25 HP – 220/440V – 3 Phs
Tailstock Taper………. #5 MT
Gross Weight…………. 12,300 Lbs

STANDARD EQUIPMENT:

20” – 3 Jaw Chuck
Steady Rest
Follow Rest
(4) Way Tool Post
(4) Way Rapid Traverse
Inch/Metric Dials
Thread Chasing Dial
Full Length Splash Guard
Halogen Work Light
Coolant System
Tool Box w/Tools

MACHINE FEATURES:

6” Spindle Hole
Gap Bed Design
Spindle Clutch & Brake
Geared Head
Rear Chuck Mount
Automatic Lubrication
Solid Cast Iron Base
Hardened & Ground Head Stock, Gears & Bed Ways

 OPTIONAL ACCESSORIES (P.O.R.):

20” – 4 Jaw Chuck
25″ – 4 Jaw Chuck
20” Steady Rest
Face Plate
Taper Attachment
Newall Digital Readout

“USA” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 12335 Category: Lathes - Conventional
