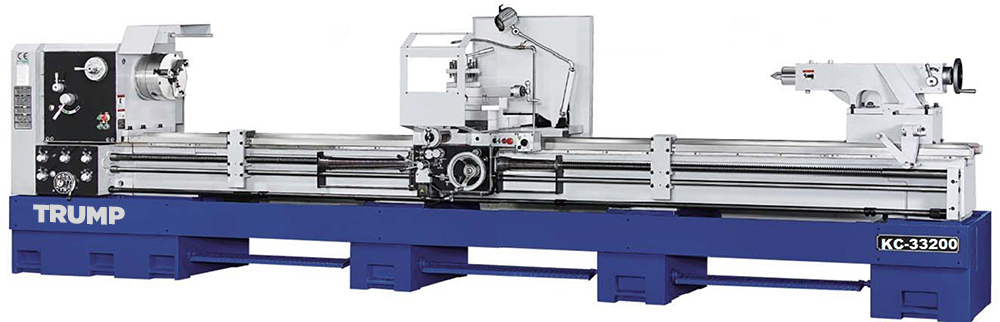

Model: KC-33240
Type: Geared Head Lathe
Year: New
SPECIFICATIONS:
Headstock Type……….. Geared Head
Swing Over Bed……….. 33”
Swing Over Cross Slide… 22.4”
Swing in Gap…………. 38.5”
Dist. Between Centers…. 240”
Spindle Nose…………. A2-11
Spindle Hole…………. 4.13” (6”, 9” & 12” Opt)
Bed Width……………. 17.7”
Spindle Speeds……….. (18) 23 – 1290 RPM
Threading……………. Inch/Metric
Motor Size…………… 15 HP – 220/440V – 3 Phs
Tailstock Taper………. #5 MT
Weight………………. 13,170 Lbs
Dimensions…………… To be Advised
EQUIPPED WITH:
(4) Way Toolpost
Coolant System
One Shot Lube
Full Length Splash Guard
(1) Back Plate for 3-Jaw Chuck
Thread Dial
Center & Center Sleeve
Foot Brake
Leveling Block
Halogen Work Light
Tool Kit
Manuals
MACHINE FEATURES:
4.13″ Spindle Hole
Gap Bed Design
Overload Clutch
H & G Headstock Gears
H & G Bedways
(1) Piece Cast Meehanite Bed
OPTIONAL ACCESSORIES
12″ – 3 Jaw Chuck w/Reversable Jaws (4.13” H)
15″ – 3 Jaw Chuck (5.31” H)
20″ – 3 Jaw Chuck (7.48” H)
25″ – 3 Jaw Chuck (7.5” H)
20″ – 4 Jaw Chuck (6.299” H)
25″ – 4 Jaw Chuck (7.5” H)
Upgrade from 15 HP to 20 HP (4.13”)
Upgrade from 20 HP to 25 HP (6”, 9“ & 12”)
Upgrade 6” Spindle Bore w/A2-11 Nose
Upgrade 9” Spindle Bore w/A2-15 Nose
Upgrade 12” Spindle Bore w/A2-20 Nose
(20”) Face Plate (A2-11)
(24”) Face Plate (A2-11)
(6.2” – 13.3”) Steady Rest
(1.18” – 9.8”) Follow Rest
Micro Meter Carriage Stop
Taper Attachment
#5 MT Live Center
Quick Change Toolpost w/(6) Holders
Newall Digital Readout – Installed
COMMENTS:
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
