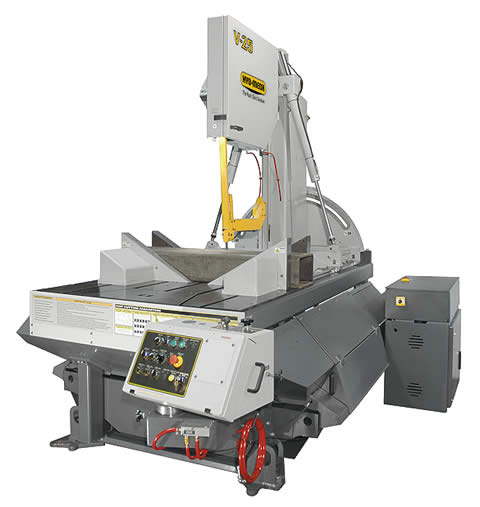

Model: V-25
Type: Tilt Frame
Year: New
SPECIFICATIONS:
​Cutting Capacities:
Degree Retangle Round
At 90…… 30″ x 25″ 25″
At 45…… 21″ x 25″ 21″
At 60 Lt… 14.5″ x 25″ 14.5″
At 60 Lt… 13.5″ x 25″ 13.5″
Blade Size…………… 1-1/2” x 21’1/2”
Blade Speed (VS)……… 75 – 350 SFM
Table Heigth…………. 44″
Motor Size…………… 10 HP – 240/480V – 3 Phs
Weight:……………… 10,000 Lbs
Dimensions (LxWxH)……. 160″ x 96″ x 123″
EQUIPPED WITH:
(2) Full Stroke Hydraulic Vise
Operator Control Console
Coolant System w/Wash Down Hose
Powered Blade Brush
Blade Breakage Switch
Easy to Read Angle Scale
Digital Angle Display
Laser Light
Work Light
MACHINE FEATURES:
“Hydraulic” Head Tilt – 60 Degree (Left & Right)
“Hydraulic” Head Advance & Retract
“Hydraulic” Heavy Duty Guide Arms
“Hydraulic” Blade Tension
Linear Bearings & Guides
Heavy Carbide Guides
Heavy Duty Gear Box
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
(1) Overhead Bundling (Must Specify Left or Right)
Conveyor Bridge (Required for Out Feed)
Tall Square Vise Insert
Variable Vise Pressure
Non Driven Pop Up Roller
Mist Lubrication System
Chip Bucket w/Coolant Return Pump
Hydraulic Chip Conveyor Drive
Idler Conveyor (5’ Section)
Idler Conveyor (10’ Section)
COMMENTS: Mfg. in North America
