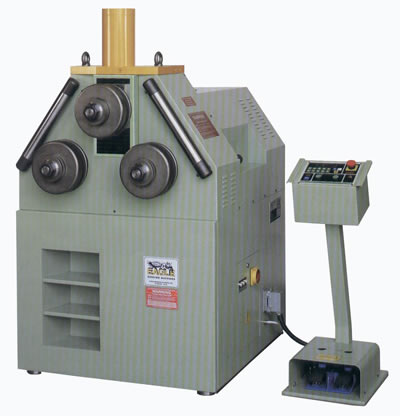

3" x 3" x 5/16" EAGLE  ... SINGLE PINCH
Click to enlarge
Home Rolls - New & Used Angle Rolls 3″ x 3″ x 5/16″ EAGLE … SINGLE PINCH
3" x 3" x 5/16" EAGLE ... SINGLE PINCH
3" x 3" x 5/16" EAGLE ... SINGLE PINCH
Back to products
4’ x 12 GA EURO ROLL ... HYDRAULIC PLATE ROLL
4’ x 12 GA EURO ROLL ... HYDRAULIC PLATE ROLL

3″ x 3″ x 5/16″ EAGLE … SINGLE PINCH

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: CP-60-H-REV
Type: Single Pinch
Year: New

SPECIFICATIONS:

Shaft Diameter:…….. 2.375”
Roll Diameter:……… 8.843”
Driven Rolls:………. (2)
Rolling Speed:(V.S.)… 0-14 FPM
Work Plane:………… Horizontal/Vertical
Adjustable Rolls:…… 4” x 15ga x 72” Dia
Motor:…………….. 3.4 HP – 220V – 3 Phs
Weight:……………. 2,850 Lbs

CAPACITIES:

Flats Hard………. 3-1/4” x 5/8” x 32” Dia
Flats Easy………. 4-3/4” x 7/8” x 26” Dia
Square Bar………. 1-3/4” x 30” Dia
Angle Leg Out……. 3” x 1/4” x 30” Dia .
Angle Leg In…….. 2-1/2” x 5/16” x 34” Dia
Tee Leg Out……… 3” x 5/16” x 32” Dia
Tee Leg In………. 3” x 5/16” x 40” Dia
Channel Leg Out….. 4-1/2” x 2” x 32” Dia
Channel Leg In…… 4-1/2” x 2” x 36” Dia
Round Bar……….. 2” x 28” Dia
Pipe……………. 2-1/2” x 36” Dia
Tubing Round…….. 4” x 15ga x 72” Dia
Tubing Square……. 2-1/2” x 11ga x 48” Dia
Tubing Rectangle…. 1-1/4” x 3” x 1/8”
Rolling Speed:(V.S.)… 0-14 FPM

EQUIPPED WITH :

(3) Roll Single Pinch “Mechanical”
(2) Powered Lower Rolls
Hydraulic Adjustment of the Top Roll
Movable Control Console with:

Push Button Controls
LED Display of Top Roll Position
Automatic Position Repeat System (40 Preset Memory)

Integral Hydraulic Unit
Forward & Reverse Rolling
Foot Pedal Rotation Control
Combination Horizontal/Vertical Positions
Hardened Shafts
Self Aligning Roller Bearings
Rugged Steel Frame
Knurled Lower Rolls
Safety Indicator Lights
Thermal Overload Relay
Dual E-Stop Switches
(2) Multi-Positional Lateral Guides w/Thrust & Rake Angle Settings
Service Tools

COMMENTS:

“USA” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 5405 Category: Angle Rolls
