THE “BENDIND MACHINE” CAPITAL

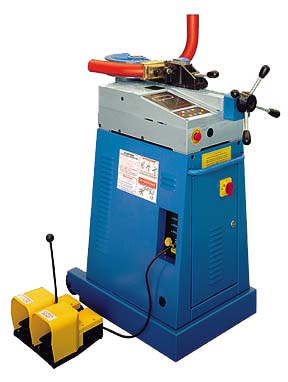

Model: Mega Bender 030 … Programable Touch Pad
Year: New
SPECIFICATIONS:
Minimum Diameter………… 1/4″
Maximum Diameter………… 3″
Maximum Speed……..(VS)… .6 – 2.2 RPM
Minimum Centerline Radius… 2 x’s Mat Dia
Maximum Centerline Radius… 15″
Bending Capacity………… 0-180 Degrees
Drive Motor…………….. 2 HP – 220V – 1 Phs
or 220/440V – 3 Phs
Dimensions…(H,L,W)…….. 39″ x 30″ x 20″
Weight…………………. 450 Lbs
CAPACITIES:
Pipe ……………….. 2-1/2″ x Sch 40
M.S. Tube …………… 3″ x .125″
S.S. Tube …………… 3″ x .118″
304L S.S. Tube ………. 2-3/4″ x .157″
Round Solids ………… 1-3/4″
Rect. Solids ………… 3/4″ x 2-3/8″
Rect. Tube ………….. 1″ x 2-1/2″ x .118″
Sq. Solid …………… 1-1/4″
Sq. Tube ……………. 2-1/2″ x .118
STANDARD EQUIPMENT
Programmable “Touch Pad” Control
Programmable Bending Angle
Programmable Material Spring Back Compensation w/Display
(30) Programs Storage
(9) Bends per Program
Variable Bending Speed
Foot Pedal
Swing Away Counter-Bending Die Vise
Tool Kit
MACHINE FEATURES:
Bends 90 Degrees in (7) Seconds
Centerline Radius as Small as 2 x’s Material Diameter w/o Mandrel Tooling
Patented Tooling System w/Multiple Radius Available
Tools Mount to Hex Shaped Shaft for Rapid Changeover
Portable Base w/Lift Handle
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
Pipe Tooling Kit
Small Radius Tube Kit
Large Radius Tube Kit
(2) Axis Positioning Table
5’ Mandrel Table
10’ Mandrel Table
20’ Mandrel Table
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices subject to change without notice
