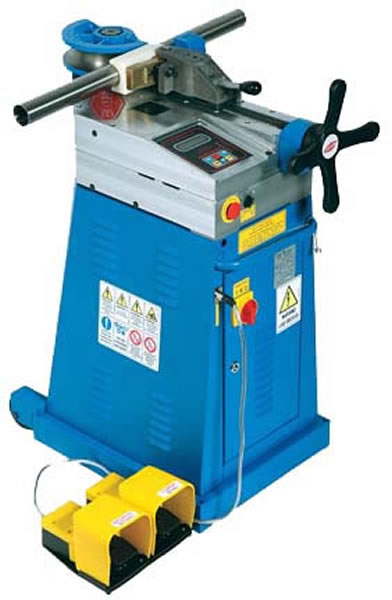

Model: Topbender 60
Year: New
Specifications:
Minimum Diamter…………. 1/4″
Maximum Diameter………… 2-1/2″
Maximum Speed………(2)… 1.7 Or 3.4 RPM
Minimum Centerline Radius… (2) Times Meterial Dia
Maximum Centerline Radius… 15″
Bending Capacity………… 0-180 Degrees
Drive Motor…………….. 2 HP-220V-3 Phs
Dimensions…(H,L,W)…….. 36″ X 27″ X 15″
Weight…………………. 430 Lbs
CAPACITIES:
Dia. Wall
Pipe ……………….. 2″ X Sch 40
M.S. Tube …………… 2-1/2″ …. .157″
S.S. Tube …………… 2-1/2″ …. .118″
304L S.S. Tube ………. 2-1/2″ …. .118″
Round Solids ………… 1-1/2″
Rect. Solids ………… 1/2″ X 2″
Rect. Tube ………….. 1″ X 2″ … .125″
Sq. Solid …………… 1.60″
Sq. Tube ……………. 2″ …….. .203″
Equipped With:
Rotary Draw
“Electro-Mechanical”
Bends To 90 Degrees In (7) Seconds
Nc Touch Pad Control With
(10) Programs Storage
(9) Bends Per Program
Programmable Material Spring-Back Compensation
(2) Bending Speeds
Patented Tooling System With Multiple Radius Available
Swing Away “Counter-Bending” Die Vise
Portable With Base Wheels & Lift Handle
Tools Mount To Hex Shaped Shaft For Rapid Changeover
Foot Pedal
Comments:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: Imco At 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices Subject To Change Without Notice
