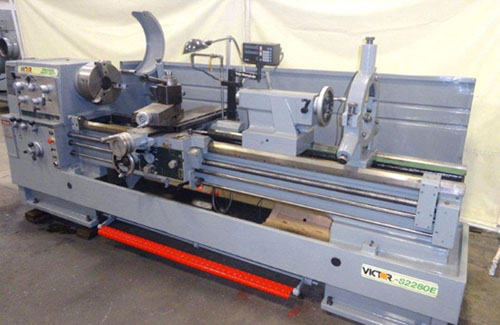

26″ x 120″ VICTOR … LATHE 4-1/8″ SPINDLE HOLE

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: 26120-S
Type: Heavy Duty Lathe
Year: New

SPECIFICATIONS:

Headstock……………. Geared Head
Swing Over Bed……….. 26”
Swing Over Cross Slide… 18-1/16”
Swing in Gap…………. 33-1/4”
Dist Between Centers….. 120”
Spindle Nose…………. D1-11
Spindle Hole…………. 4-1/8”
Bed Width……………. 15-3/4”
Spindle Speeds(12)……. 15 – 2000 RPM
Threading……………. Inch/Metric
Motor Size…………… 15 HP – 220/440V – 3 Phs
Tailstock Taper………. #5 MT
Gross Weight…………. 7458 Lbs
Dimensions…………… To Be Advised


EQUIPPED WITH:

20″ – 4 Jaw Chuck
(3” – 10”) Steady Rest
(4) Way Tool Post
Face Plate
Coolant System
Full Length Splash Guard
Chuck Cover w/Limit Switch
Thread Dial
Wrenches & Tool Box
Work Lamp

MACHINE FEATURES:

4-1/8″ Spindle Hole
Tailstock … (2) Speed
H & G Gears & End Ways
Gap Bed
“Meehanite Casting” Bed
Foot Brake
Spindle Support by (3) Precision Bearings
Rigid Compound for Heavy Cutting

OPTIONAL EQUIPMENT:

15″ – 3 Jaw Chuck
15″ – 3 Jaw Chuck (Zero Set)
20″ – 3 Jaw Chuck
20″ – 4 Jaw Chuck
(3” – 10”) Steady Rest w/Roller Heavy Duty
(8” – 15”) Steady Rest w/Roller Heavy Duty
Follow Rest
20” Face Plate
Taper Turning Attachment
Quick Change Tool Post w/(5) Holders
(2) Axis Newall DRO – Installed

COMMENTS:

 “U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.: Location

TERMS:  Check w/Order

All prices subject to change without notice
