Model: SE 2040 … Floor
Year: New
Type: Single Spindle … Geared Head
SPECIFICATIONS:
Max Dist Column To Spindle Center:… 26”
Number Of Spindles………………. (1)
Column Size:……………………. 5-1/2”
Spindle Taper:………………….. #4 MT
Spindle Travel:…………………. 7-1/2”
Table Size:…………………….. 20” x 24”
Spindle Speeds:(8)………………. 108 – 1800 RPM
Motor Size:…………………….. 3 HP-220/440V-3 Phs
Weight:………………………… 700 Lbs
Dimensions……………………… To be Advised
Drilling Capacities:
Mild Steel……………………. 1.6”
Cast Iron…………………….. 2”
EQUIPPED WITH :
Production Table
Spindle Power Down Feed
Direct Gear Drive / No Loss Of Power
Table Rotates 360 Degrees Around Column
Thermal Overload
OPTIONAL ACCESSORIES AVAILABLE … (P.O.R.)
Spindle Automatic Reversing
Coolant
Foot Operated Reversing Switch
COMMENTS:
Mfg. In Europe

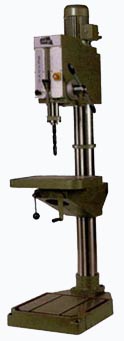

Catalog Photo
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices subject to change without notice
