Model: SE-2030 … Floor
Year : New
Type: Single Spindle … Geared Head
SPECIFICATIONS:
Max Dist Column To Spindle Center:… 12.5”
Number Of Spindles………………. (1)
Column Size:……………………. 4.1”
Spindle Taper:………………….. #3 MT
Spindle Travel:…………………. 6”
Table Size:…………………….. 14” x 20”
Spindle Speeds:(8)………………. 90 – 3610 RPM
Motor Size:…………………….. 1.5/2 HP – 220/440V – 3 Phs
Weight:………………………… 640 Lbs
Dimensions……………………… To be Advised
Drilling Capacities:
Mild Steel……………………. 1-1/4”
Cast Iron…………………….. 1-1/2″
EQUIPPED WITH:
Production Table
Direct Gear Drive / No Loss Of Power
Table Rotates 360 Deg. Around Column
Emergency Stop
Thermal Overload
OPTIONAL ACCESSORIES AVAILABLE … (P.O.R.)
Spindle Power Feed
Spindle Automatic Reversing
Coolant Foot Operated Reversing Switch
COMMENTS:

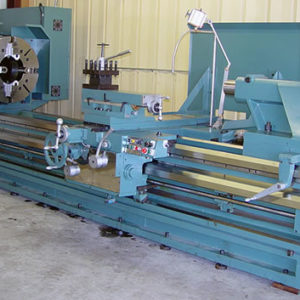

Catalog Photo
Mfg. In Europe
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices subject to change without notice
