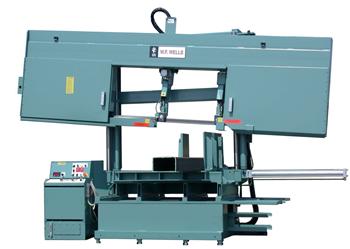

Model: B-25-2C
Year: New
Type: Double Column
SPECIFICATIONS:
Cutting Capacity
Rounds
At 90 Degrees…… 25”
At 45 Degrees…… 24”
Rectangles
At 90 Degrees…… 22” X 40”
At 45 Degrees…… 22” X 24”
Max Work Load Capacity… 15,000 Lbs
Work Height………….. 34”
Blade Size…………… 1-1/2” X .050” X 26’-6”
Blade Speed(V.S.)…….. 60-500 SFPM
Motor Size…………… 10 HP-208/460V-3 Phs
Weight………………. 6800 Lbs
EQUIPPED WITH:
6 Degree Cant Head
Double Column w/Linear Bearings (For Maximum Capacity & Rigidity)
“Semi-Automatic” Cut Cycle – Saw Frame Returns To Position Automatically
Variable Speed Blade
Set Travel Up & Down (Can Be Set To Allow Notching Of Blocks)
Adjustable Hydraulic Feed Rate & Force
Automatic Shut Off At End Of Cut
(1) Bi-Metal Blade
Hydraulic Powered Blade Brush
Carbide Blade Guides w/Rollers (Spring Tensioned)
Electronic Door Interlocks
Hydraulic Vise
Blade Tension w/Indicator
Blade Break/Stall Switch
Hydraulic Positioned Guide Arm
Coolant System
Instruction & Parts Manuals
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
Hydraulic Hold Down, Saw Vise
Hydraulic Chip Conveyor (Auger Style)
Outboard Vise
Outboard Vise W/Hydraulic Hold Down
40” X 56” Discharge Table W/Stock Stop
High Speed Drive & Guides (500-3000 Sfpm)
40” X 5’ Manual Conveyor
40” X 10’ Manual Conveyor
40” X 10’ Hydraulic Powered Conveyor
COMMENTS: Mfg. In U.S.A.
