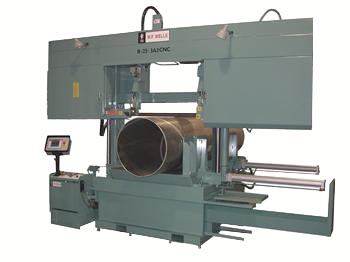

Model: B-25-2CA3 CNC
Year: New
Type: Double Column / Fully Automatic
SPECIFICATIONS:
Cutting Capacity
Round
At 90 Degrees… 25”
Rectangle
At 90 Degrees… 22” x 40”
Work Height……….. 34”
Work Load Capacity…. 14,000 Lbs
Blade Size………… 1-1/2” x .050” x 26’-6”
Blade Speed(V.S.)….. 60-500 SFPM
Motor Size………… 10 HP-208/460V-3 Phs
Weight……………. 11,000 Lbs
EQUIPPED WITH:
“Fully Automatic”
CNC Programmable Controlled w/Color Touch Screen
500 + Job Selection
Double Column w/Linear Bearings (For Maximum Capacity & Rigidity)
Unlimited Shuttle Indexes
(0-36”) Stroke Bar Feed – CNC Controlled
Variable Vise Pressure
Automatic Kerf Compensation
On Screen Help Menu
Digital Blade Speed Indicator
Hydraulic Blade Tension
Machine Diagnostics
Inch / Metric Programmability
12” x 41” Out Feed Table
Hydraulic Positioned Guide Arms
Hydraulic Vise
Powered Blade Brush
Blade Break / Stall Switch
Coolant
Instruction & Parts Manuals
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
Hydraulic Hold Down, Saw Vise
Hydraulic Hold Down Bar Feed Vise
Hydraulic Chip Conveyor (Auger Style)
Outboard Vise
Outboard Vise w/Hydraulic Hold Down
40” x 56” Discharge Work Table
High Speed Drive & Guides (500-3000 SFPM)
40” x 5’ Manual Conveyor
40” x 10’ Manual Conveyor
COMMENTS: Mfg. In U.S.A.
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part !
Have A Technical Question !
CALL: IMCO At 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices subject to change without notice
