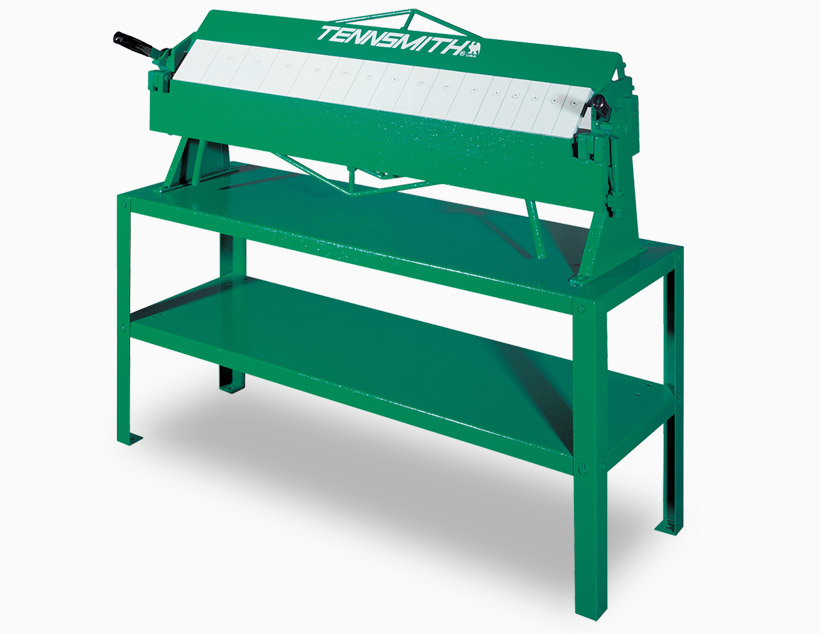

22 GA x 4' TENNSMITH ... BOX & PAN BRAKE
Click to enlarge
Home Brakes - New and Used Box & Pan Brakes New & Used 22 GA x 4′ TENNSMITH … BOX & PAN BRAKE
22 GA x 4' TENNSMITH ... HAND BRAKE
22 GA x 4' TENNSMITH ... HAND BRAKE
Back to products
16 GA x 4' TENNSMITH ... BOX & PAN BRAKE
16 GA x 4' TENNSMITH ... BOX & PAN BRAKE

22 GA x 4′ TENNSMITH … BOX & PAN BRAKE

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: U48-22
Type: Box & Pan
Year: New

SPECIFICATIONS:

Bending Capacity(Mild Steel)…. 22 ga
Bend Length………………… 48-1/4″
Maximum Lift of Beam………… 7/8″
Front to Rear Beam Adjustment… 1/4″
Maximum Box Depth…………… 3”
Minimum Reverse Bend………… 5/16″
Minimum Flange in Capacity…… 3/8″
Finger Widths………………. 2″, 3″ & 4″
Weight…………………….. 280 Lbs

EQUIPPED WITH:



STANDARD EQUIPMENT

Removable Apron Angle
Counter Weight

MACHINE FEATURES

Welded Steel Construction
Leveling Screws & Lock Nuts on the Pedestals
Jack Screws & Tension Bolts on



OPTIONAL ACCESSORIES AVAILABLE: P.O.R.

Floor Stand

COMMENTS: Mfg. in U.S.A.

“USA”  IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice



SKU: 13863 Category: Box & Pan Brakes New & Used
