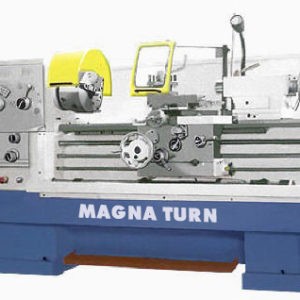

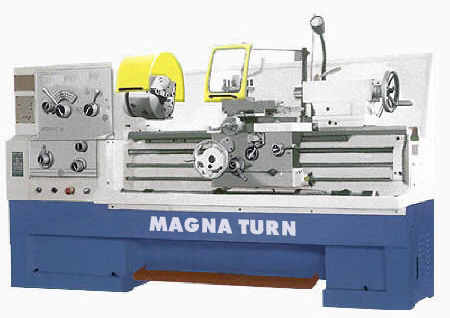

Model: FEL
Type: Engine Lathe
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 20”
Swing Over Cross Slide… 12-5/8”
Swing in Gap…………. 28-7/8”
Dist Between Centers….. 60”
Spindle Nose…………. D1-8
Spindle Hole…………. 3-1/4”
Bed Width……………. 11-5/8”
Spindle Speeds(12)……. 15 – 1500 RPM
Threading……………. Inch / Metric
Motor Size…………… 10” HP – 220/440V – 3 Phs
Tailstock Taper………. #4 MT
Weight………………. 4800 Lbs
Dimensions…………… To be Advised
EQUIPPED WITH:
MACHINE FEATURES:
3-1/4” Spindle Hole
Gap Bed Design
Cast Iron Bed
H & G Head Stock Gears & Bed Ways
Main Spindle Supported w/ (3) Precision Bearings
Inch Metric Gear Box
Foot Brake
STANDARD EQUIPMENT:
10” – 3 Jaw Chuck
12” – 4 Jaw Chuck
Coolant System
Full Length Splash Guard
Chuck Guard
Follow Rest
(4) Way Tool Post
Carriage Stop
5-1/2” Steady Rest w/ Rollers
Thread Dial
Center Sleeve
Halogen Work Light
Leveling Pads
Tool Box w/ Tools
Manuals
OPTIONAL ACCESSORIES AVAILABLE: P.O.R.
Micro Carriage Stop
Taper Attachment (Installed)
5C Collet Set (1/8” – 1-1/8” x 1/16”)
“Aloris Type” Q.C. Tool Post w/ (5) Holders
18N Jacobs “Ball Bearing” Chuck w/ Arbor (1/8” – 3/4” Capacity)
#4 MT Live Center
Sino DRO (Installed)
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B. Location
TERMS: Check w/Order
All price subject to change without notice
