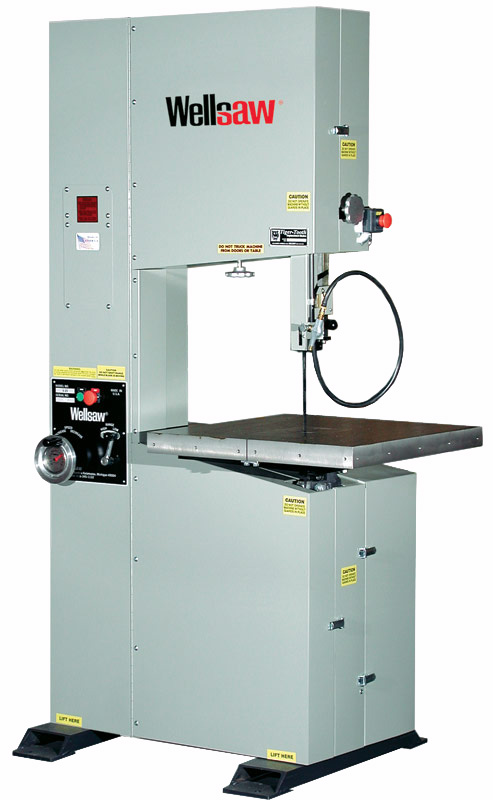

Model: V-20-24
Year: New
SPECIFICATIONS:
Throat………………. 20”
Table Size…………… 26” x 26”
Clearance Under Guide…. 24”
Work Height………….. To Be Advised
Blade Size…………… 3/16″ – 3/4” x 16′-1”
Blade Speed (VS)……… 45 – 3000 SFPM
Motor Size ………….. 2 HP-110/220V-1 Phs
or 3 HP-220/440V-3 Phs
Weight………………. 1050 Lbs
Dimensions (LxWxH)……. 57″ x 48″ x 12″
EQUIPPED WITH:
(2) Speed Gear Box
Tilt Table … 5 Degrees Inside & 45 Degrees Outside
3/4” Bi-Metal Blade
Roller Guides
Blade Tension Indicator
Work Light
Chip Blower
OSHA Blade Guarding
Rotary Blade Brush
COMMENTS: MFG in U.S.A.
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part?
Have A Technical Question?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
