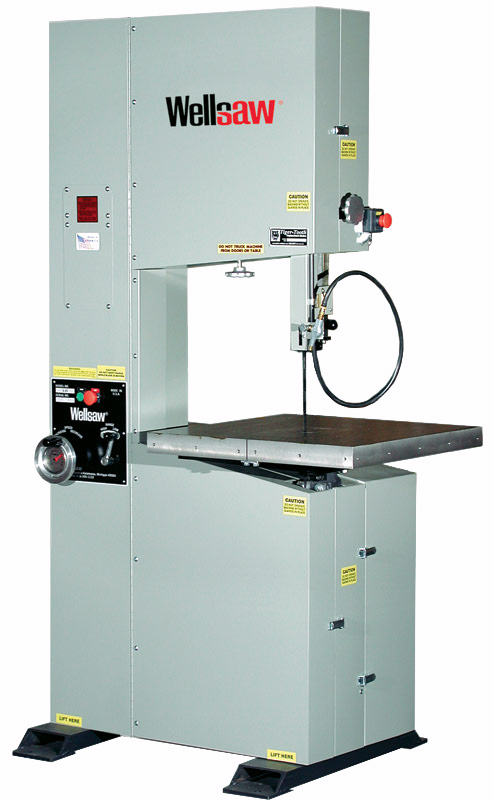

Model: V-20
Type: Vertical
Year: New
SPECIFICATIONS:
Throat………………. 20”
Table Size…………… 26” x 26”
Clearance Under Guide…. 16”
Work Height………….. To Be Advised
Blade Size…………… 3/16 – 3/4” x 14’-9”
Blade Speed (VS)……… 45 – 3000 SFPM
Motor Size…………… 2 HP – 115/230V – 1 Phs
or 3 HP – 230/460V – 3 Phs
Weight………………. 915 Lbs
Dimensions (LxWxH)……. 57″ x 48″ x 92″
EQUIPPED WITH:
(2) Speed Gear Box
Tilt Table … 5 Degrees Inside & 45 Degrees Outside
3/4” Bi-Metal Blade
Roller Guides
Blade Tension Indicator
Work Light
Chip Blower
OSHA Blade Guarding
Rotary Blade Brush
COMMENTS: Mfg in U.S.A.
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
