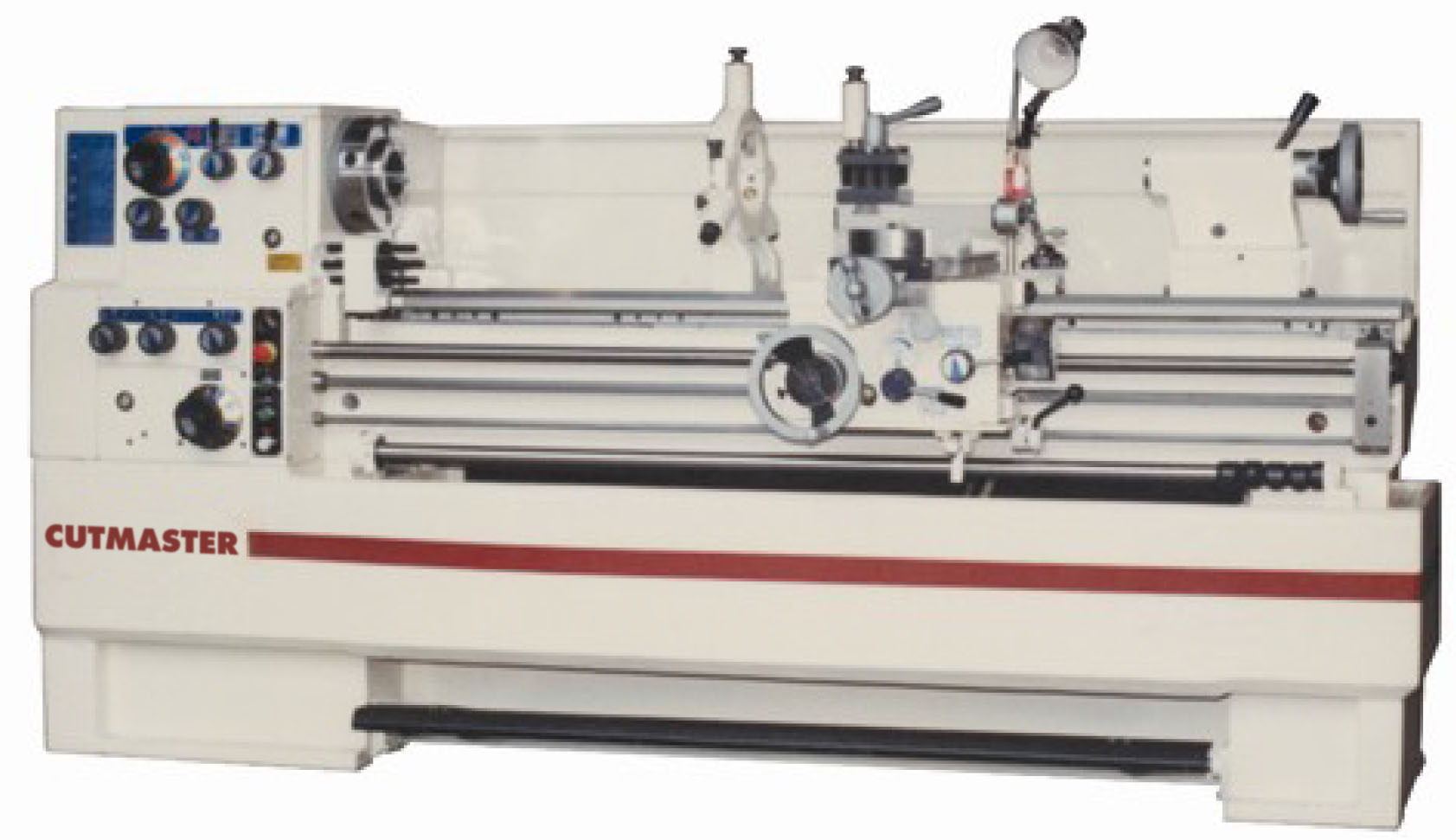

Model: GT
Type: Geared Head Lathe
Year: New
SPECIFICATIONS:
Swing Over Bed……….. 18”
Swing Over Cross Slide… 11-5/16”
Swing in Gap…………. 25-3/16”
Dist Between Centers….. 60”
Spindle Nose…………. D1-8
Spindle Hole…………. 3-1/16”
Bed Width……………. 11-13/16”
Spindle Speeds(12)……. 24 – 1600 RPM
Threading……………. Inch / Metric
Motor Size…………… 7.5 HP – 220/440V – 3 Phs
Tailstock Taper………. #4 MT
Weight………………. 5950 Lbs
Dimensions…………… To be Advised
EQUIPPED WITH:
MACHINE FEATURES
ISO 9001 “Certified”
3-1/16” Spindle Hole
Gap Bed Design
H & G Head Stock Gears
H & G Bed Ways
Main Spindle Equipped w/(3) Precision Bearings
Auto Lubrication In Head Stock
STANDARD EQUIPMENT
10” – 3 Jaw Chuck
12” – 4 Jaw Chuck
Carriage Auto Kick-Out
Full Length Splash Guard
16” Face Plate
10” Drive Plate
5-1/2” Steady Rest
3” Follow Rest
(4) Way Tool Post
(4) Way Rapid Traverse
Taper Turning Attachment
Foot Brake
Thread Dial
Work Light
Coolant System
Manual Lube
Tools & Tool Box
Operation Manual
OPTIONAL ACCESSORIES AVAILABLE: P.R.O.
12” – 3 Jaw “Set Tru” Chuck
12” – 6 Jaw “Set Tru” Chuck
16” – 4 Jaw Chuck (Steel)
Micro Carriage Stop
5C Collet Set (1/8” – 1-1/8” x 1/16”)
“Aloris Type” Q.C. Tool Post w/(5) Holders
14N Jacobs “Ball Bearing” Chuck w/Arbor (0” – 1/2”) Capacity
#4 MT Live Center
Newall DRO .. (Installed)
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
