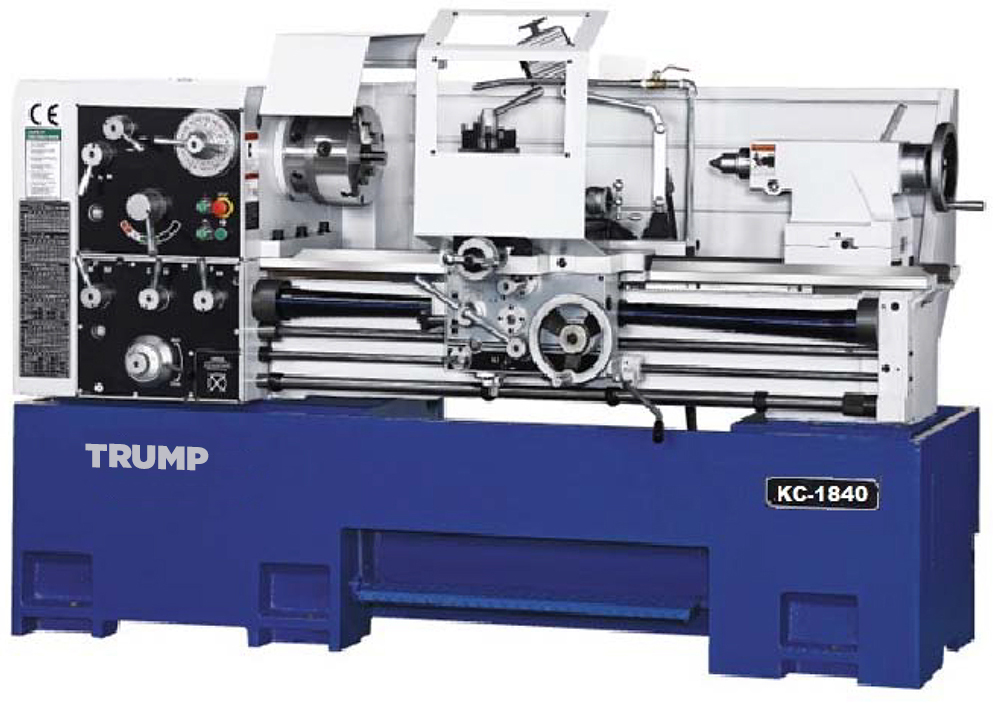

Model: KC-1840
Type: Geared Head
Year: New
SPECIFICATIONS:
Headstock Type……….. Geared Head
Swing Over Bed……….. 18”
Swing Over Cross Slide… 11”
Swing in Gap…………. 25-1/2”
Dist. Between Centers…. 39.3”
Spindle Nose…………. D1-6
Spindle Hole…………. 2.2”
Bed Width……………. 13.7”
Spindle Speeds……….. (VS) 40 – 3100 RPM
Threading……………. Inch/Metric
Motor Size…………… 7.5 HP – 220/440V – 3 Phs
Tailstock Taper………. #5 MT
Weight………………. 4410 Lbs
Dimensions…………… To be Advised
EQUIPPED WITH:
(4) Way Tool Post
Coolant System
One Shot Lube
Full Length Splash Guard
(1) Back Plate for 3-Jaw Chuck
Thread Dial
Center & Center Sleeve
Foot Brake
Leveling Block
Halogen Work Light
Tool Kit
Manuals
MACHINE FEATURES
2.2″ Spindle Hole
Gap Bed Design
Overload Clutch
H & G Headstock Gears
H & G Bedways
(1) Piece Cast Meehanite Bed
OPTIONAL ACCESSORIES:
8″ – 3 Jaw Chuck
10″ – 3 Jaw Chuck
12″ – 3 Jaw Chuck
10″ – 4 Jaw Chuck
12″ – 4 Jaw Chuck
Upgrade from 7..5 HP To 10 HP
(1” – 6.29”) Steady Rest
(16”) Face Plate
Follow Rest
Micro Meter Carriage Stop
Taper Attachment
Newall Digital Readout – Installed
COMMENTS:
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
