18" x 18" HYD-MECH ... "AUTOMATIC" HORIZONTAL BANDSAW
Click to enlarge
Home Saws - New & Used Horiz. Band Saws - New & Used 18″ x 18″ HYD-MECH … “AUTOMATIC” HORIZONTAL BANDSAW
14 Ga. x 10' MAGNA ... BOX & PAN BRAKE
14 Ga. x 10' MAGNA ... BOX & PAN BRAKE
Back to products
6' x 1/4" ... SAHINLER - HYDRAULIC PLATE ROLL
6' x 1/4" ... SAHINLER - HYDRAULIC PLATE ROLL

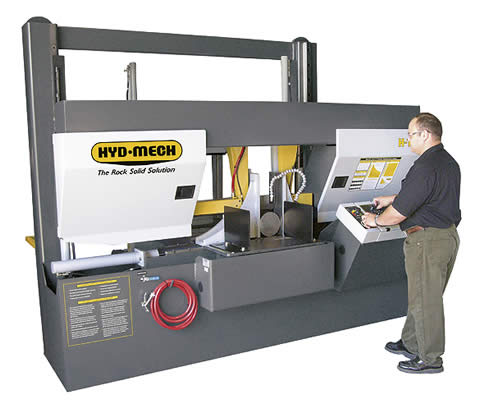

18″ x 18″ HYD-MECH … “AUTOMATIC” HORIZONTAL BANDSAW

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: H-18-A …

Type: Double Column

Year: New

SPECIFICATIONS:

Cutting Capacity:
   Rounds:
      Max. Height….. 18”
      at 90 Degrees… 18”
   Rectangles:
      Max. Width…… 18”
      at 90 Degrees… 18” x 18”
Blade Size:……….. 1-1/2” x 0.050 x 19’2”
Blade Speed:(VS)…… 50 – 350 SFM
Motor Size:……….. 10 HP-220/440V-3 Phs
Weight:…………… 8500 Lbs

EQUIPPED WITH:

Mitsubishi PLC 100 Control
(99) JOB Memory Storage w/(5) Jobs In Queue

Cutting Length
Quantity of Pieces
Blade Speed & Down feed Rate

Double Post
Hydraulic Positive Downfeed
Variable Frequency Drive
Hydraulic Blade Tension
Hydraulically Driven Chip Conveyor
Split Front Vise
Powered Chip Brush
Blade Breakage Switch
Powered Guide Arm Positioning
Work Light

OPTIONAL ACCESSORIES AVAILABLE … P.O.R.

Full Capacity Overhead Bundle (2) Vises
Out Of Stock Switch
Vertical Rollers
Laser Light
Variable Vise Pressure (2) Vises
Mist Lubrication System
Blade Deviation Monitor
Idler Conveyor (5’ Section)
Idler Conveyor (10’ Section)

COMMENTS:  Mfg. in North America

“USA”  IMPORTER  – DISTRIBUTION & PARTS CENTER

Need A Part ?
Have A Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Columbus, Ohio

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 4087 Category: Horiz. Band Saws - New & Used
