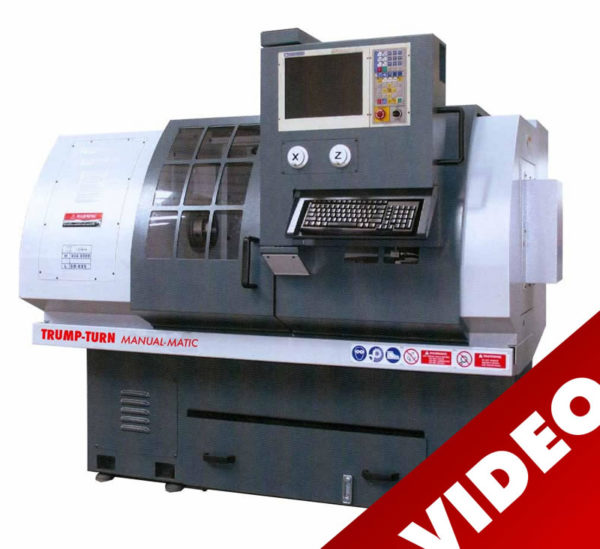

Model: KL-1640 … Centroid T-400i CNC Control
Spindle Hole: 2-1/8″
Year: New
Type: Flat Bed
SPECIFICATIONS:
Swing Over Bed:……….. 16”
Swing Over Cross Slide:… 9”
Dist Between Centers:….. 37.4”
Max. Turning Length:…… 31.5″
Spindle Nose:…………. D1-6
Spindle Hole:…………. 2-1/8”
Bed Width:……………. 11.8”
Spindle Speeds:……….. 25 – 6000 RPM
Spindle Ranges:……….. (2) Automatic
Tailstock Taper:………. # 4 MT
Rapid Traverse:……….. Yes
Motor Size:…………… 7.5 HP – 220V – 3 Phs
Control Type:…………. Centroid T-400i CNC Control
Weight:………………. 3630 Lbs
Dimensions……………. 86″(l) x 47″(w) x 62″(h)
EQUIPPED WITH:
Centroid T-400i CNC Control
“Conversational” (Shop Floor Programming) & “G” Code
15” Color Monitor
RS-232 & Ethernet Ports
(1) GB Solid State Hard Drive
Totally Enclosed (Sliding Door)
“Dual” Electronic Handwheels for Manual Operations,
Safety Chuck Guard
Auto Lube System
Back Plate
Work Light
Tool Box w/Tools
Operation Manuals
OPTIONAL ACCESSORIES AVAILABLE … (P.O.R.)
10” – 3 Jaw Chuck
12” – 3 Jaw Chuck
12” – 4 Jaw Chuck
(1.1” – 6.2”) Steady Rest
3.5” Follow Rest
(18) Piece Set Of 5C Collets (1-1/16” To 1-1/8” By 1/16”)
“Quick Change” Tool Post w/(4) Holders
(6) Station “Automatic” Electric Turret (3/4” Max Tool Size)
(8) Station “Automatic” Electric Turret (1” Max Tool Size)
Intercon Off-Line Programming (For Desktop PC)
